Single shot loader

In this instruction, I'll show how to install single shot loader.

This is instruction for an item sold by me on eBay

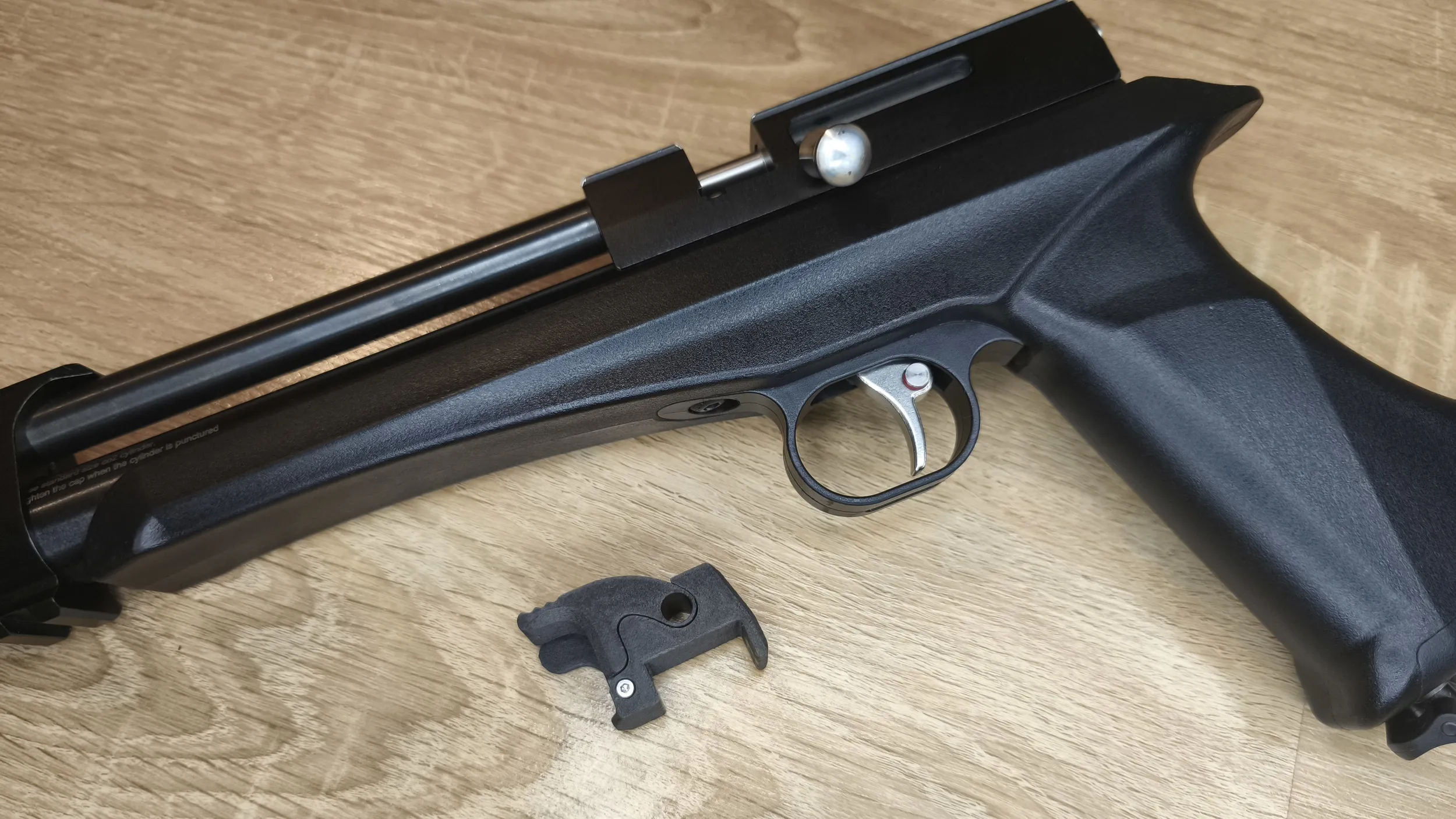

Single shot loader

Makes loading easier and faster than a standard single-shot tray when using a scope. The loading port is precisely sized and perfectly aligned, ensuring smooth pellet insertion with no pellet damage during the loading process.

Single shot loader installation

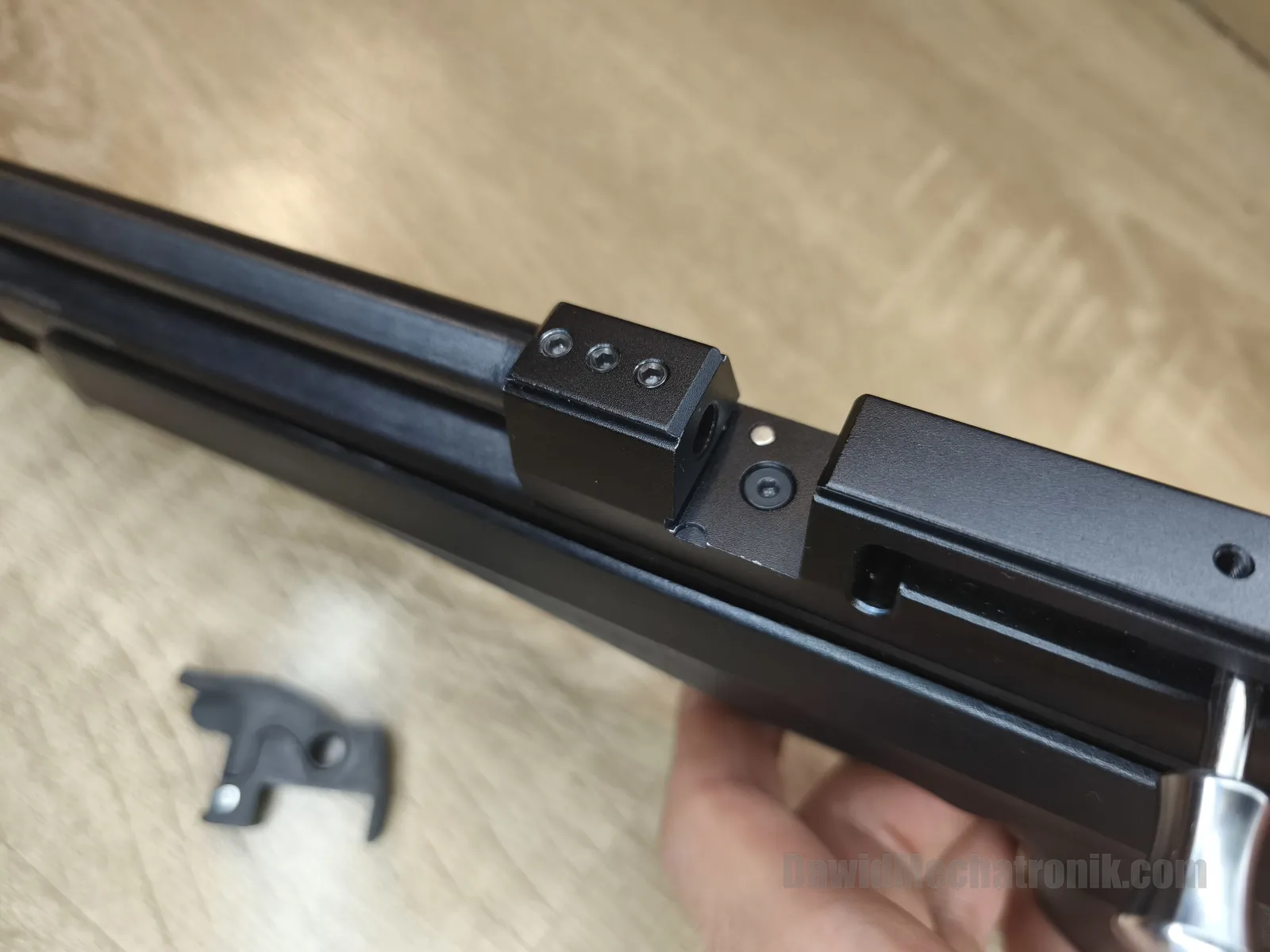

Before installation, cock the air rifle and remove the magazine or single shot tray.

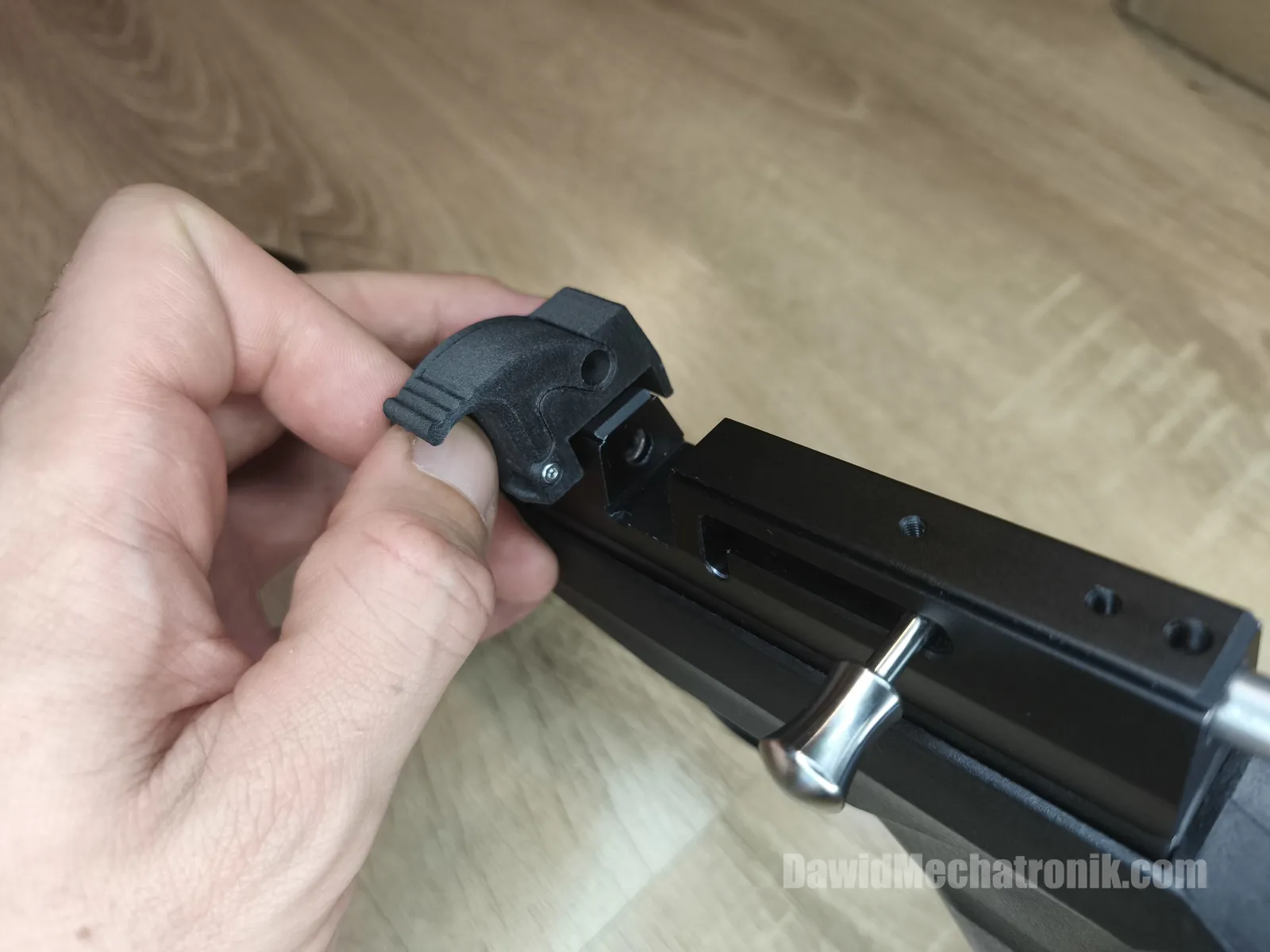

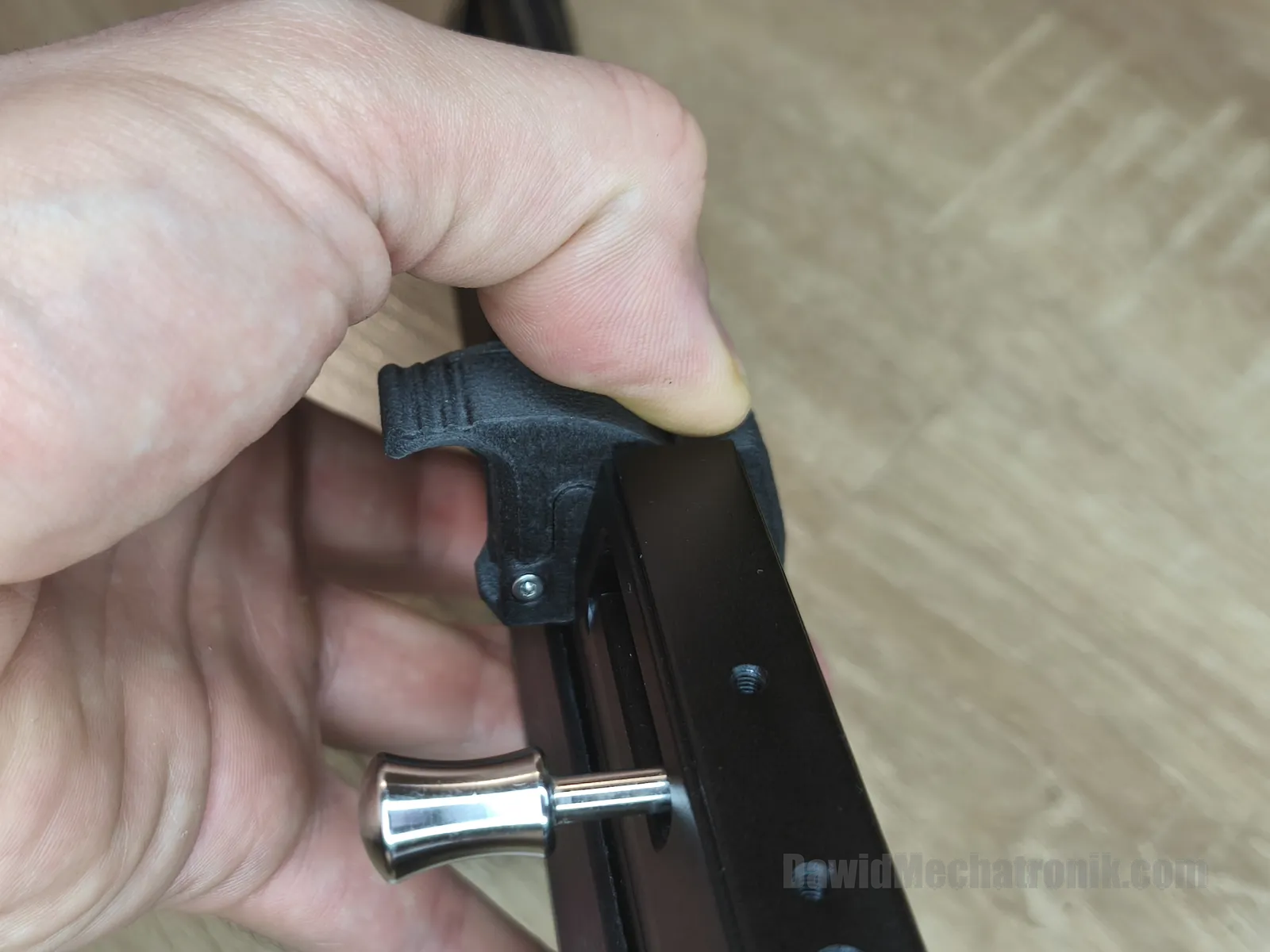

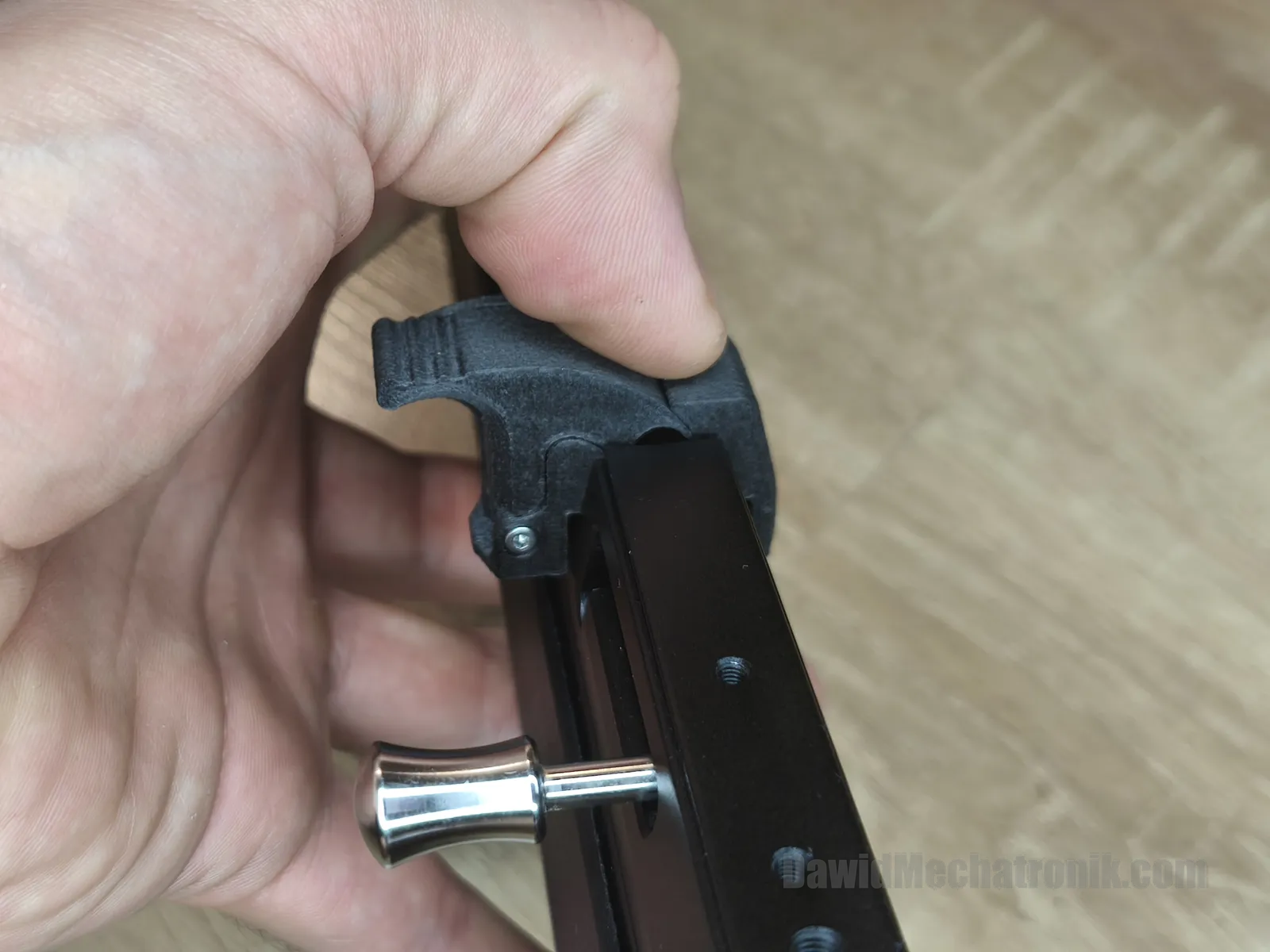

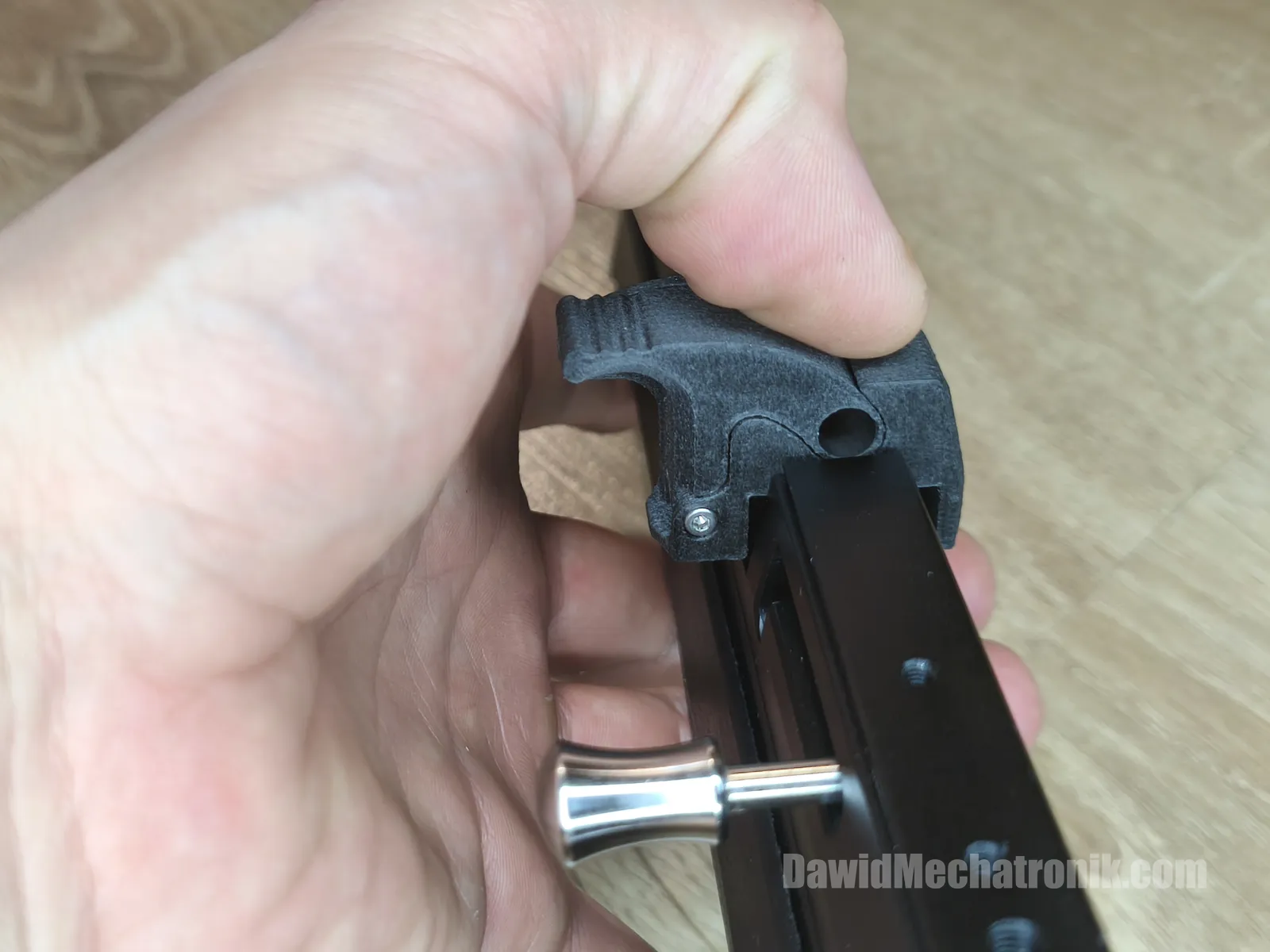

Slide in single shot loader from up to down

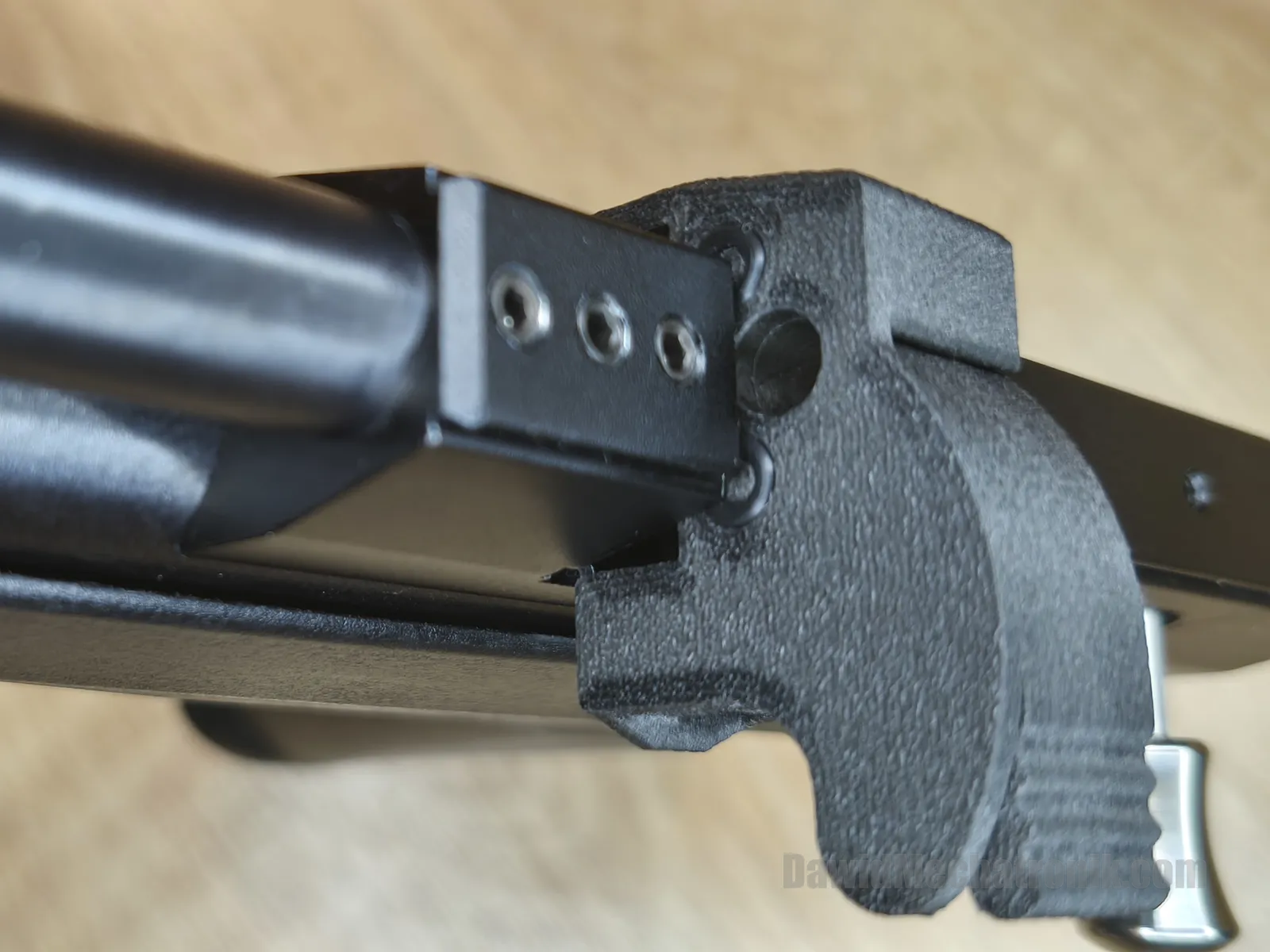

Check the orings before continuing. Both should slide in without any problems.

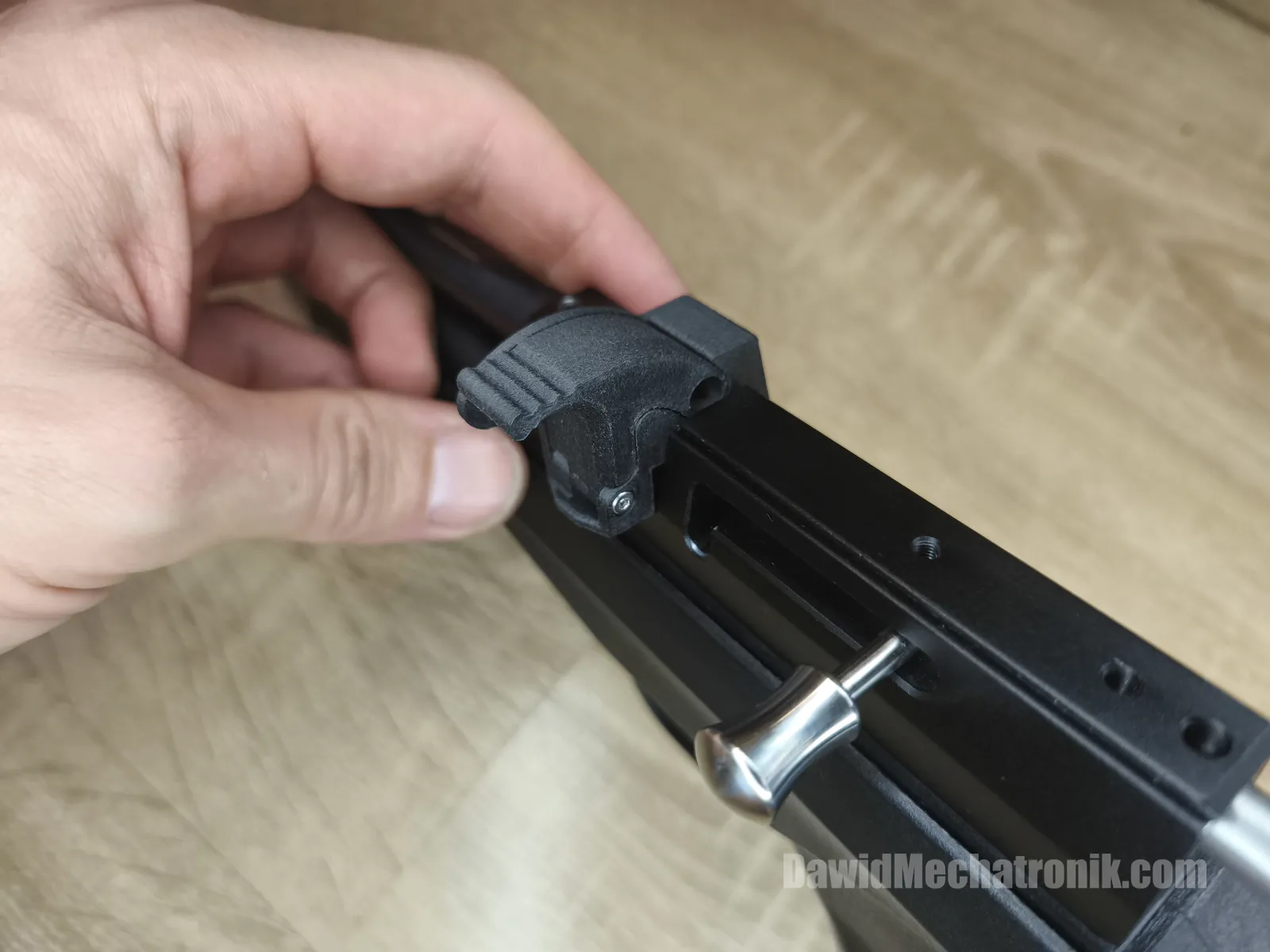

Continue sliding it from top to bottom.

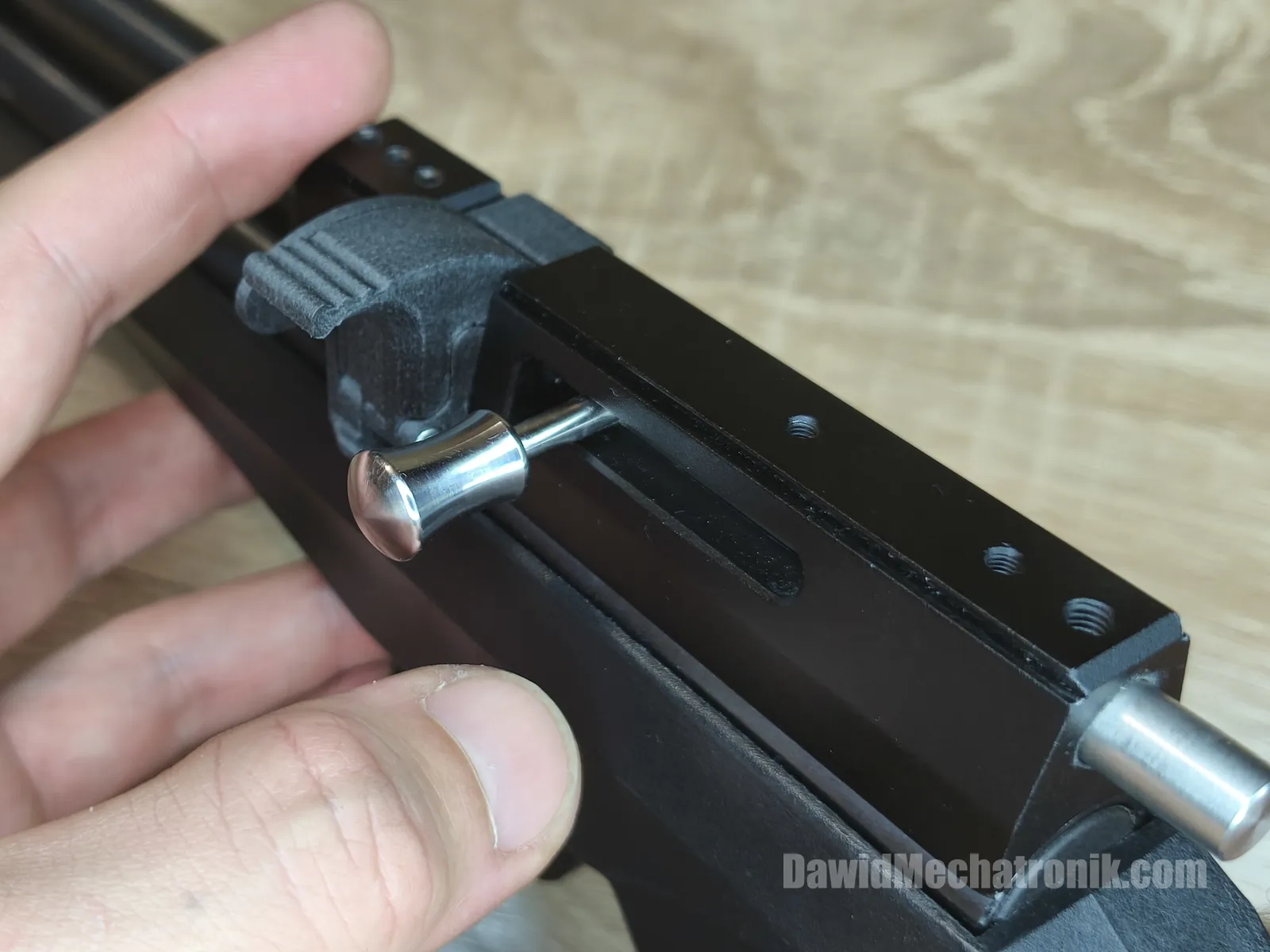

It is ready!

Installation problems:

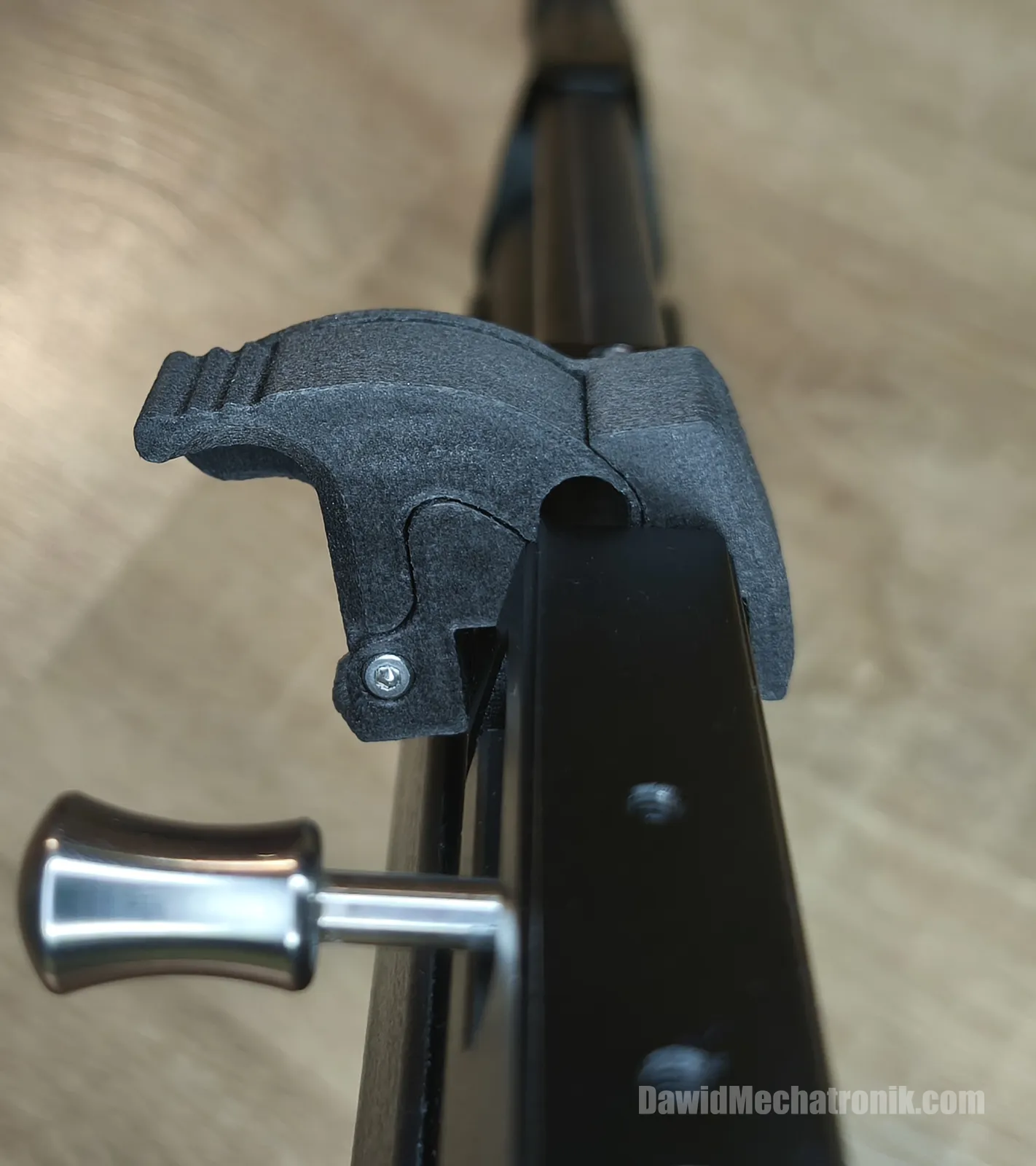

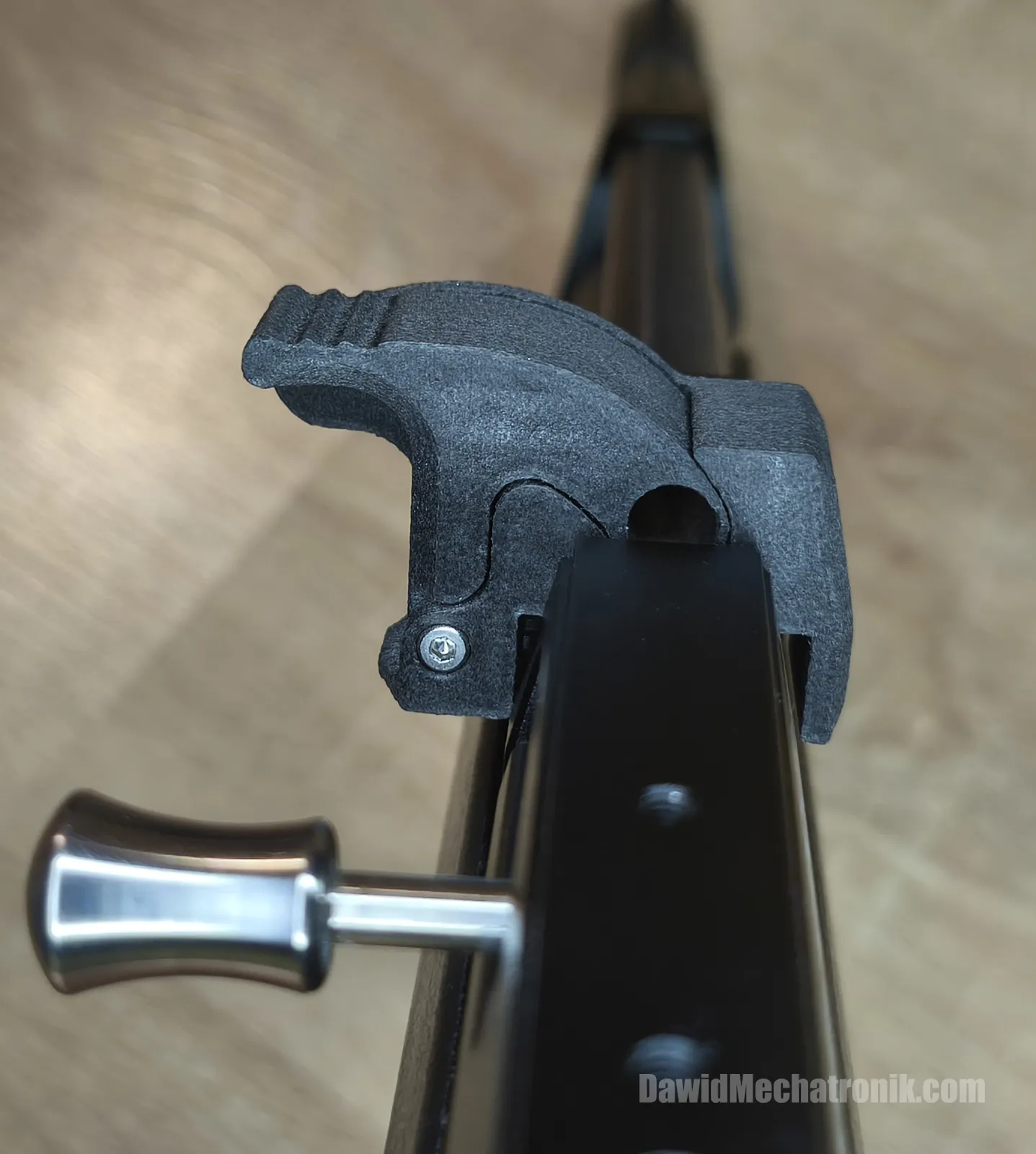

Push it straight, not at an angle (as in the first photo).

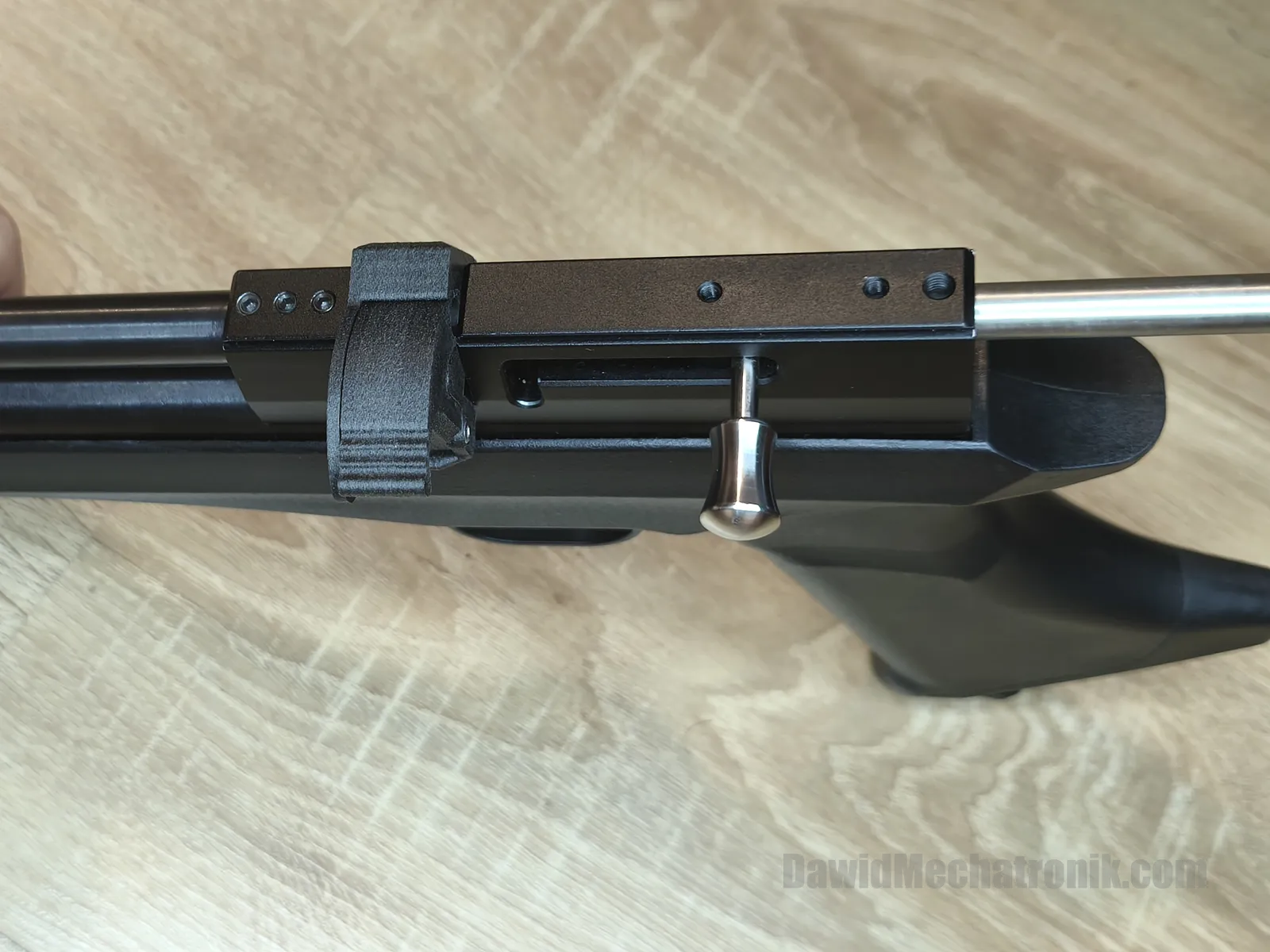

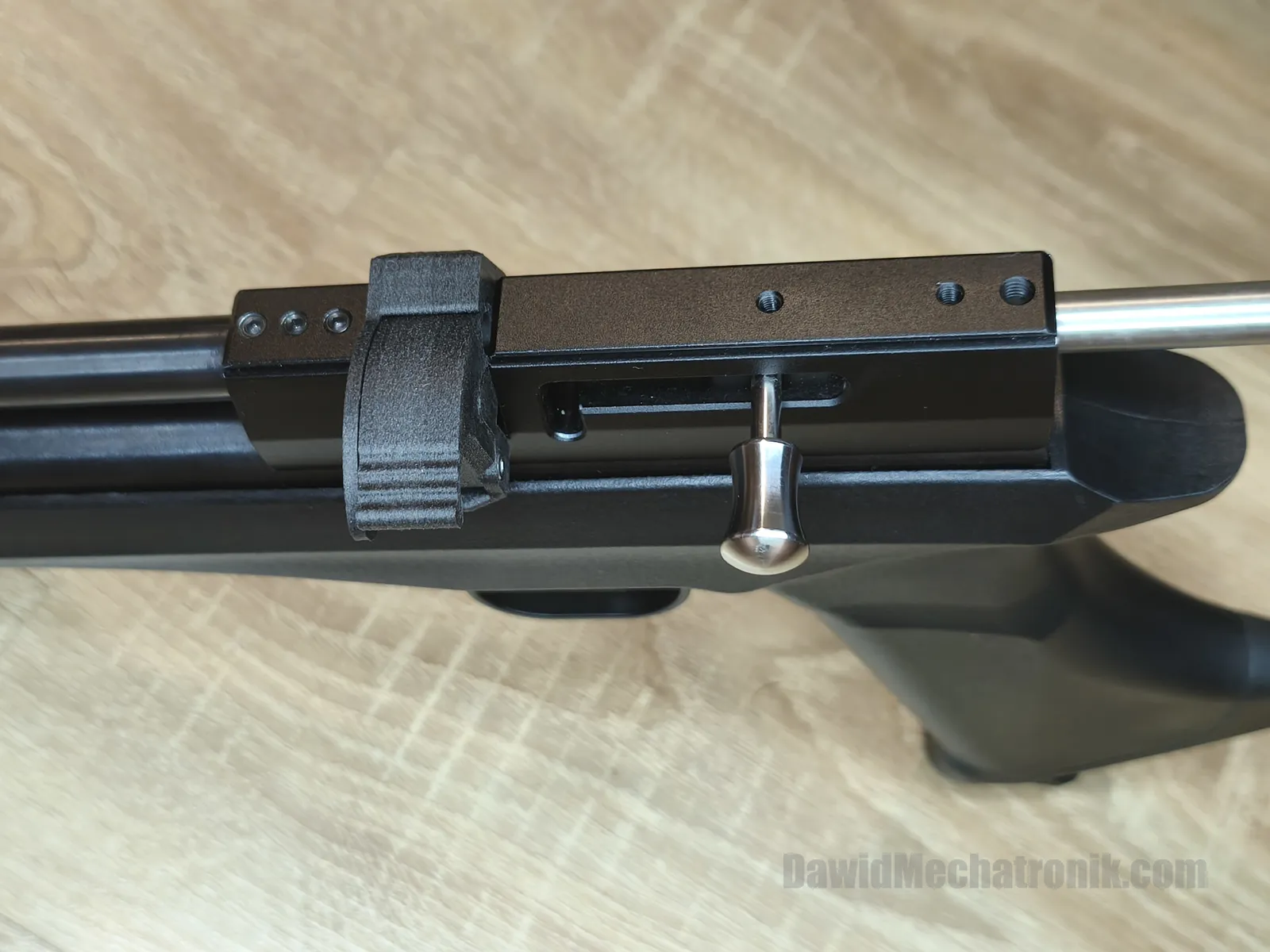

Move the cocking handle all the way back (as in the first photo).

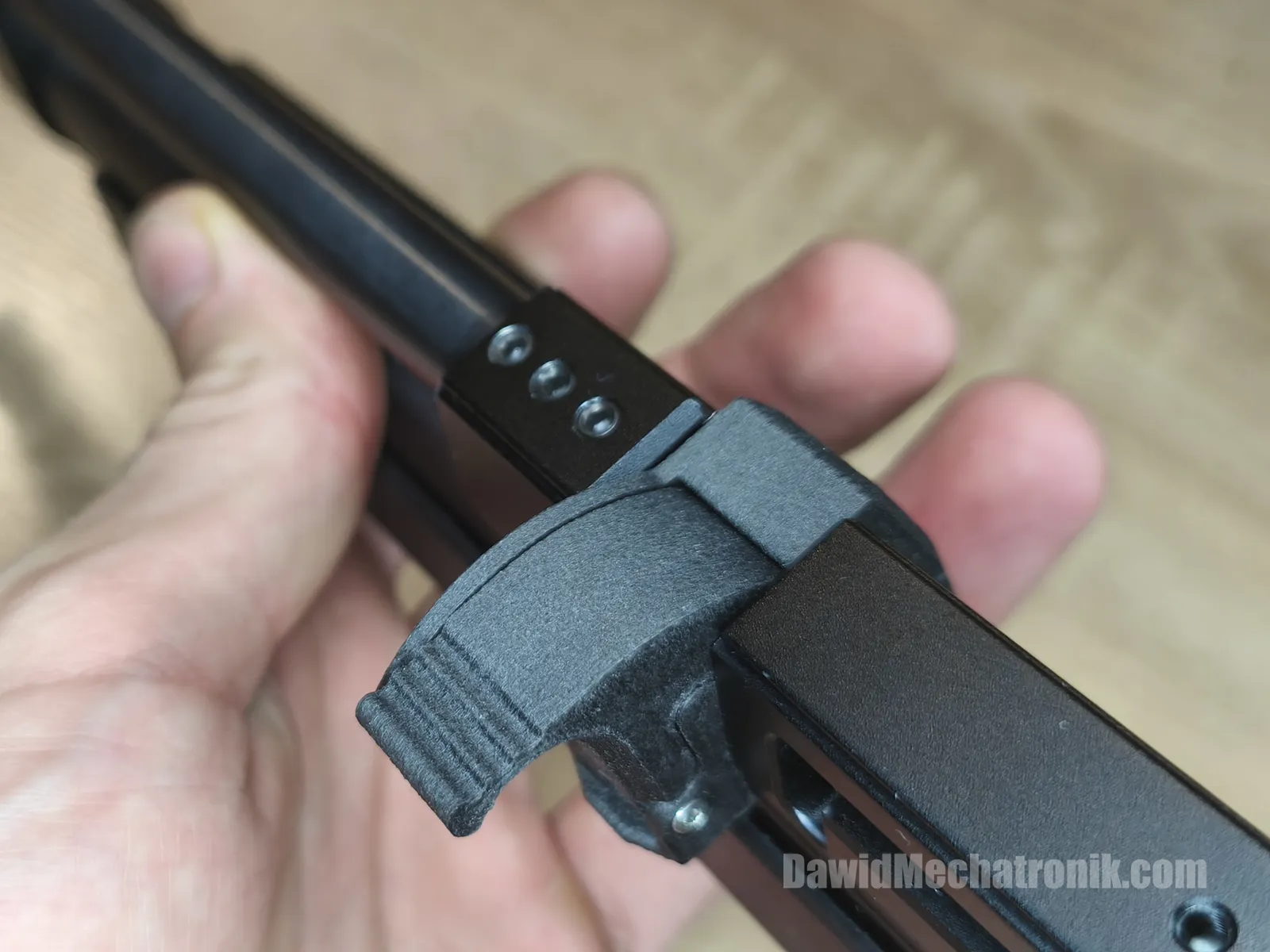

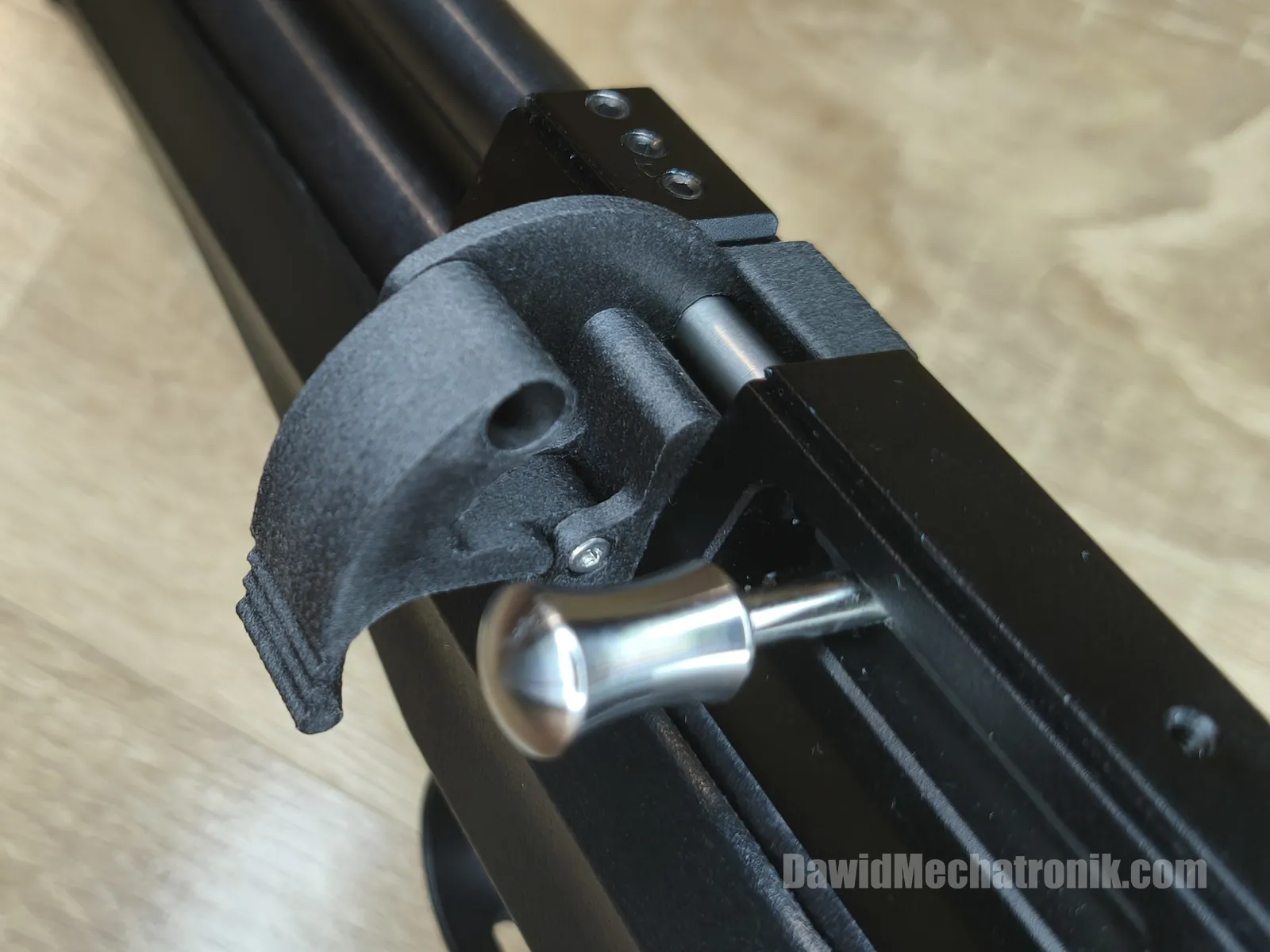

Alignment test:

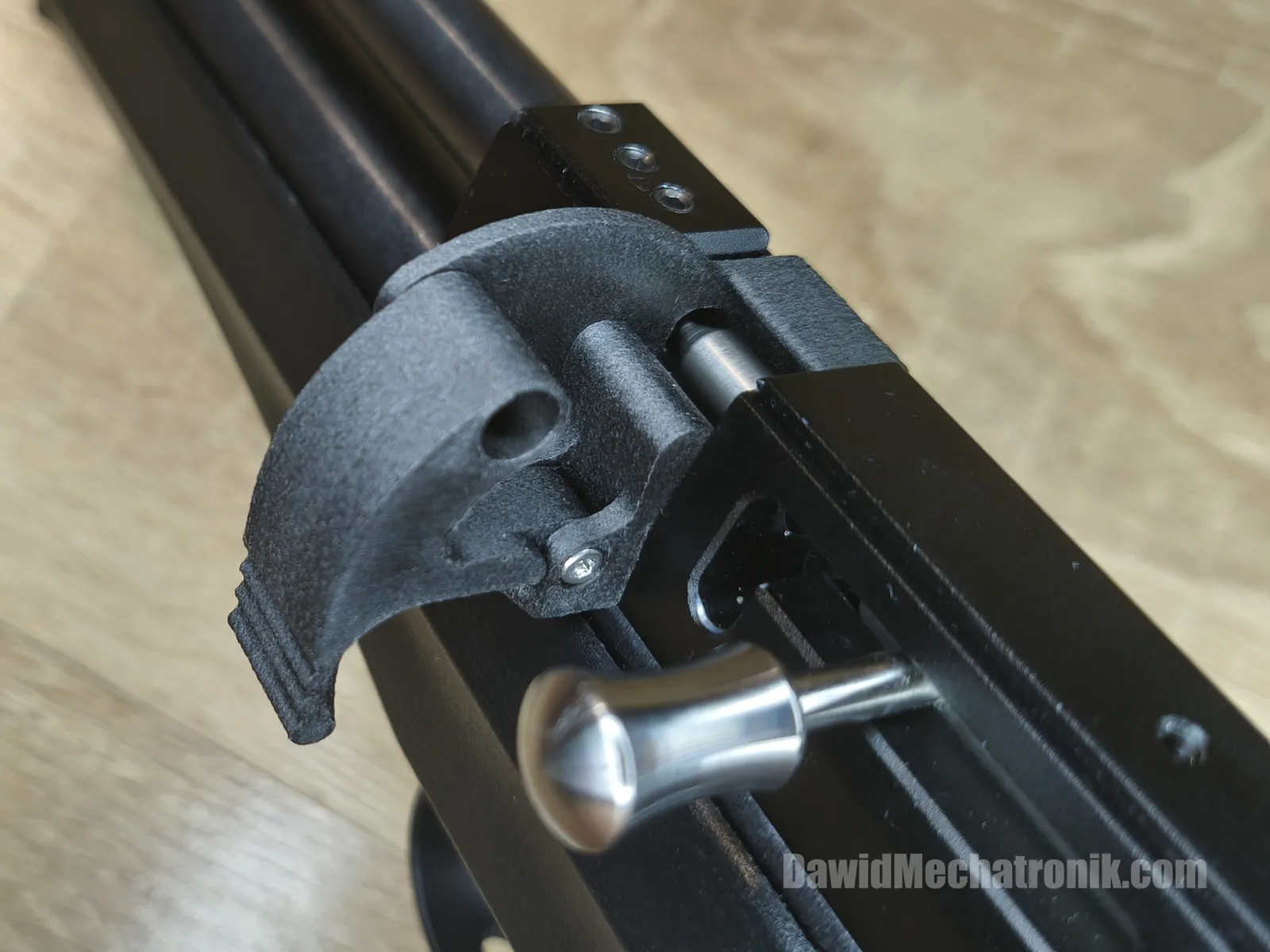

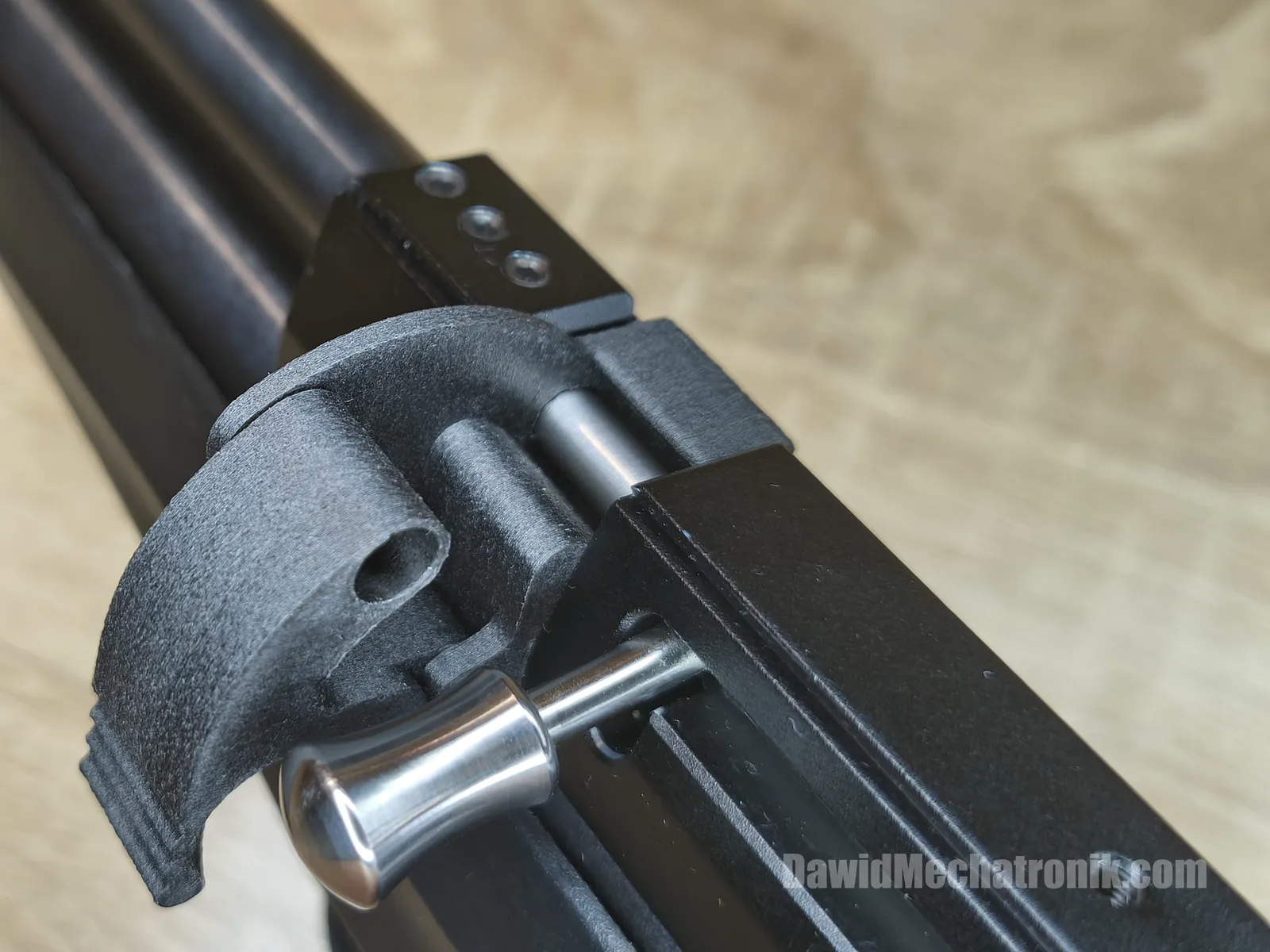

Open the loader and slide the pellet pusher in.

At this moment, you should feel some resistance - that's because of the oring in the barrel. The pellet pusher should slide in easily through the single shot loader.

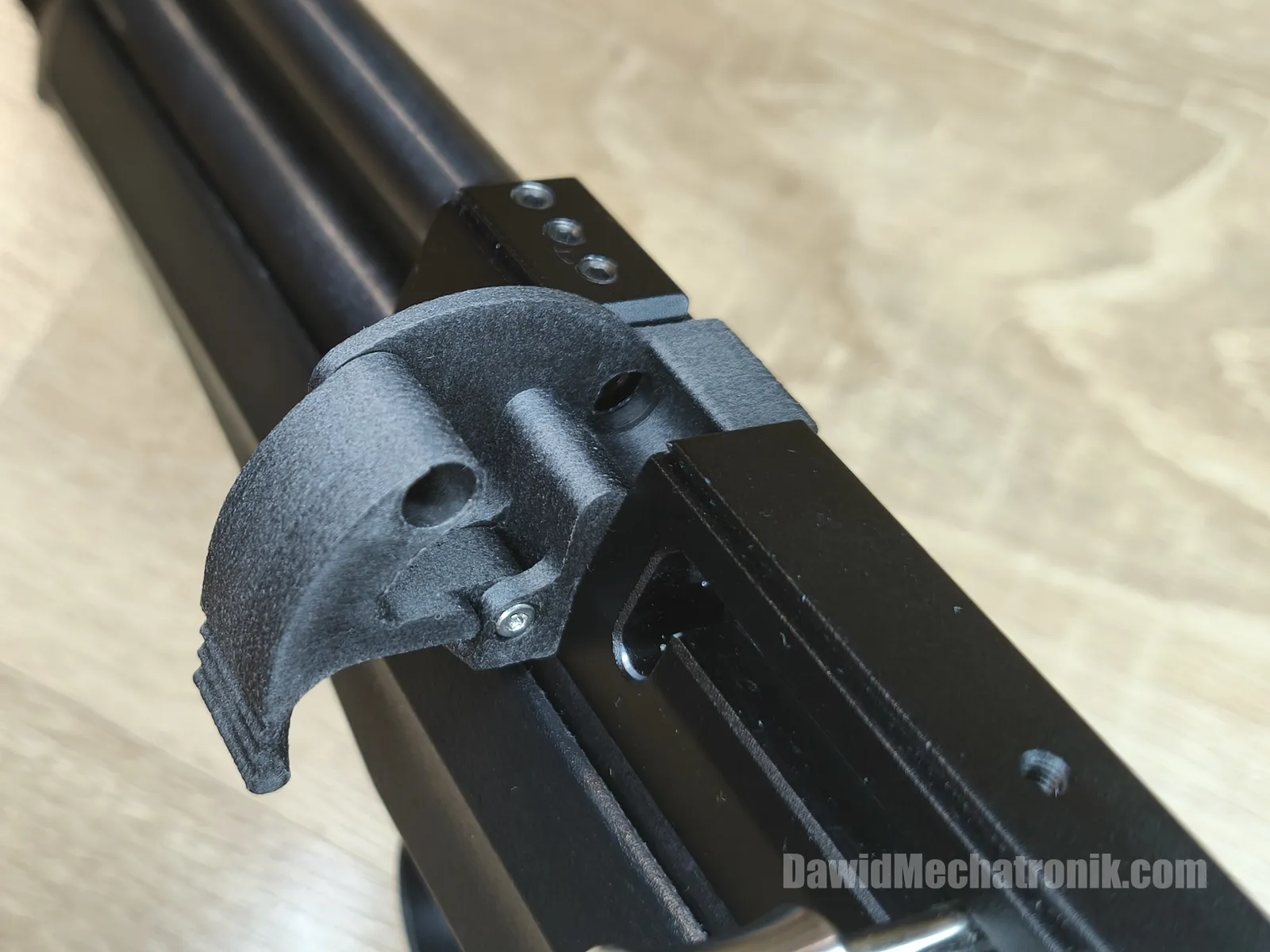

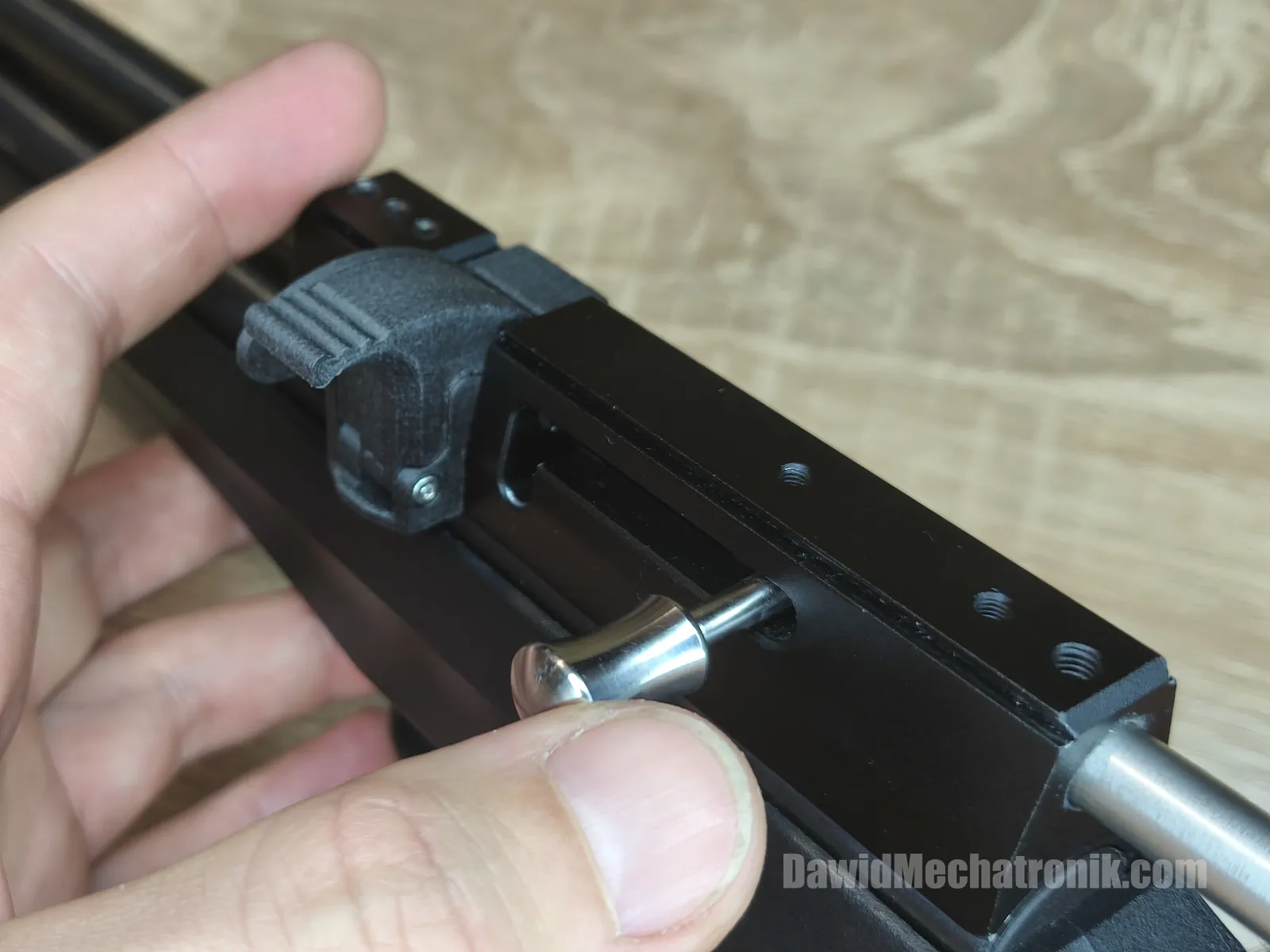

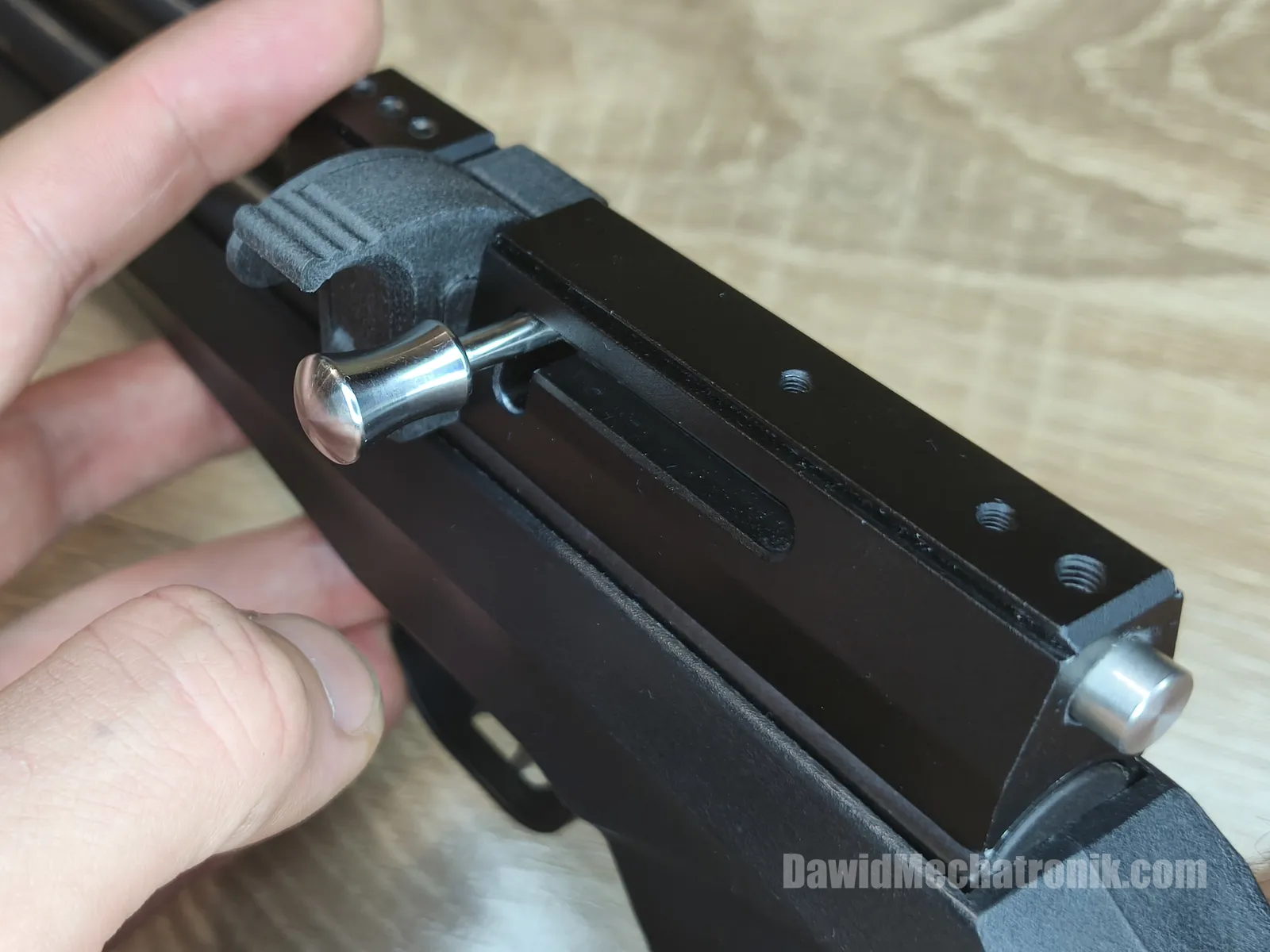

Now repeat the test with the closed loader.

There should be no difference between the open and closed single shot loader.

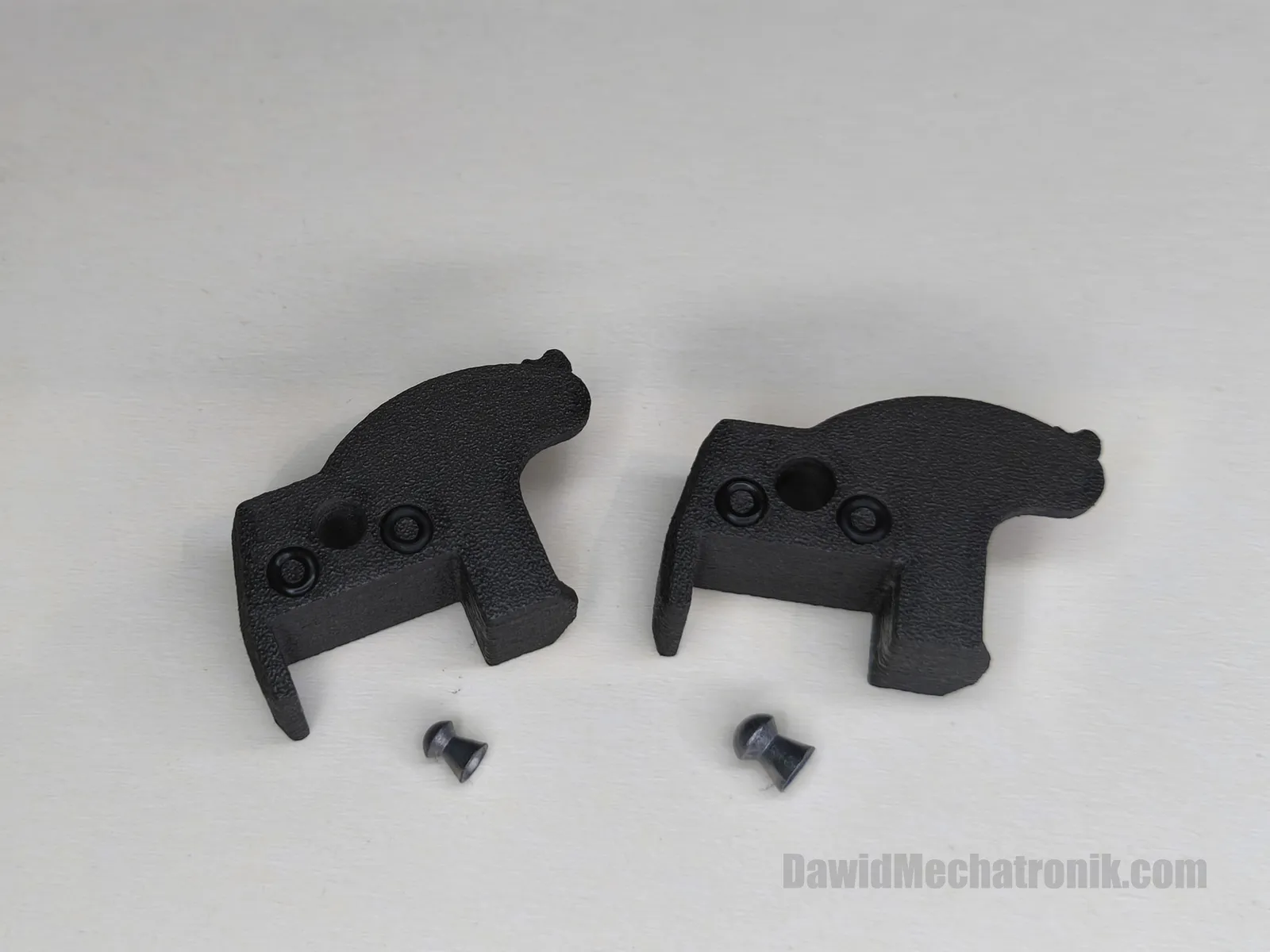

O-ring size

In this single shot loader, I use two orings for a more stable installation. The oring size is the same as in FX airguns: 2,5mm x 1,5mm.
