Picatinny rail adapter

In this instruction, I'll show how to install picatinny rail adapter in CP2 airgun.

This is instruction for an item sold by me on eBay

Picatinny rail mounting system

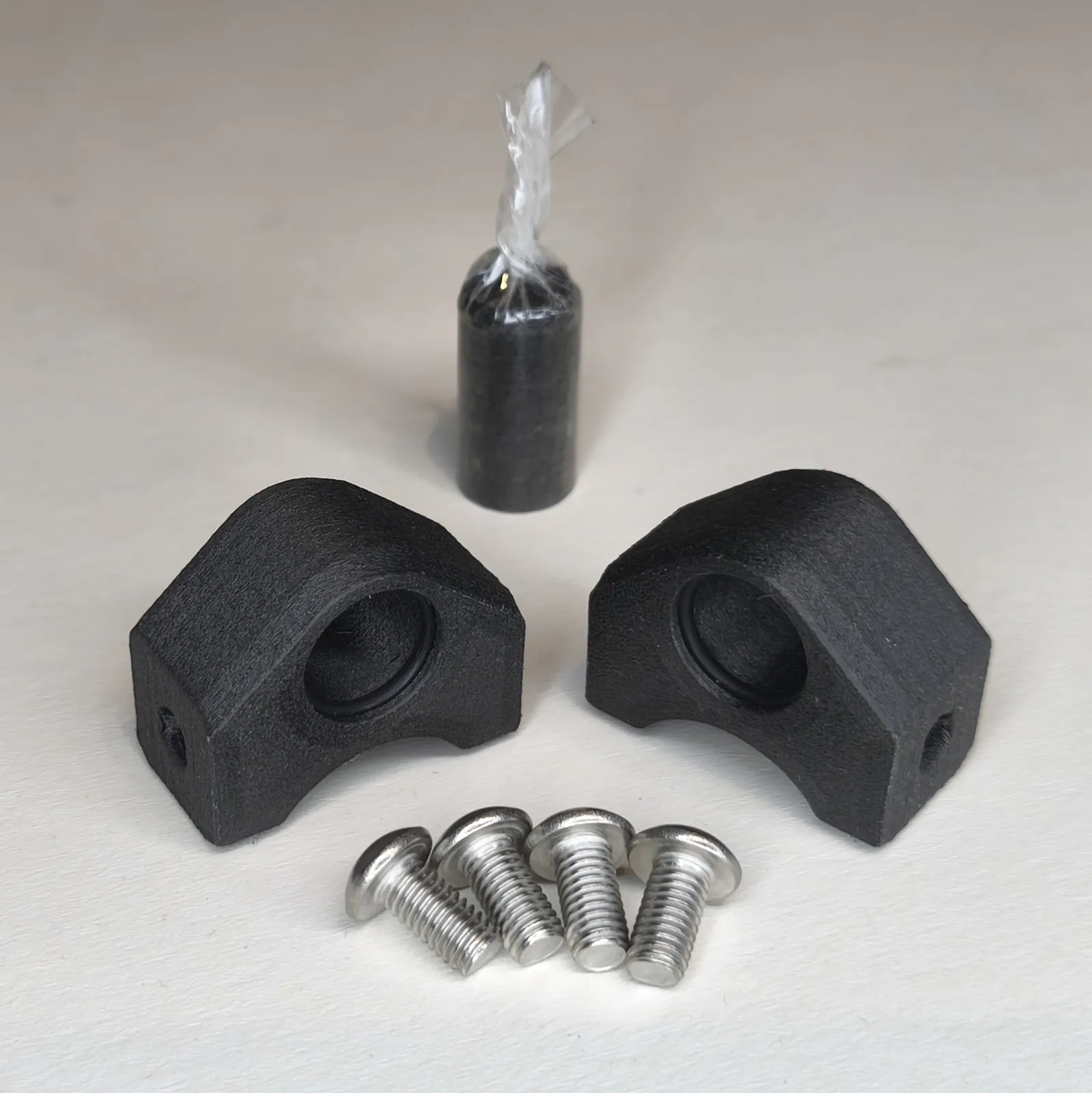

Set of two adapters, bolts and simple tool which allows you to install picatinny rail on CP2 airgun.

Disassembly

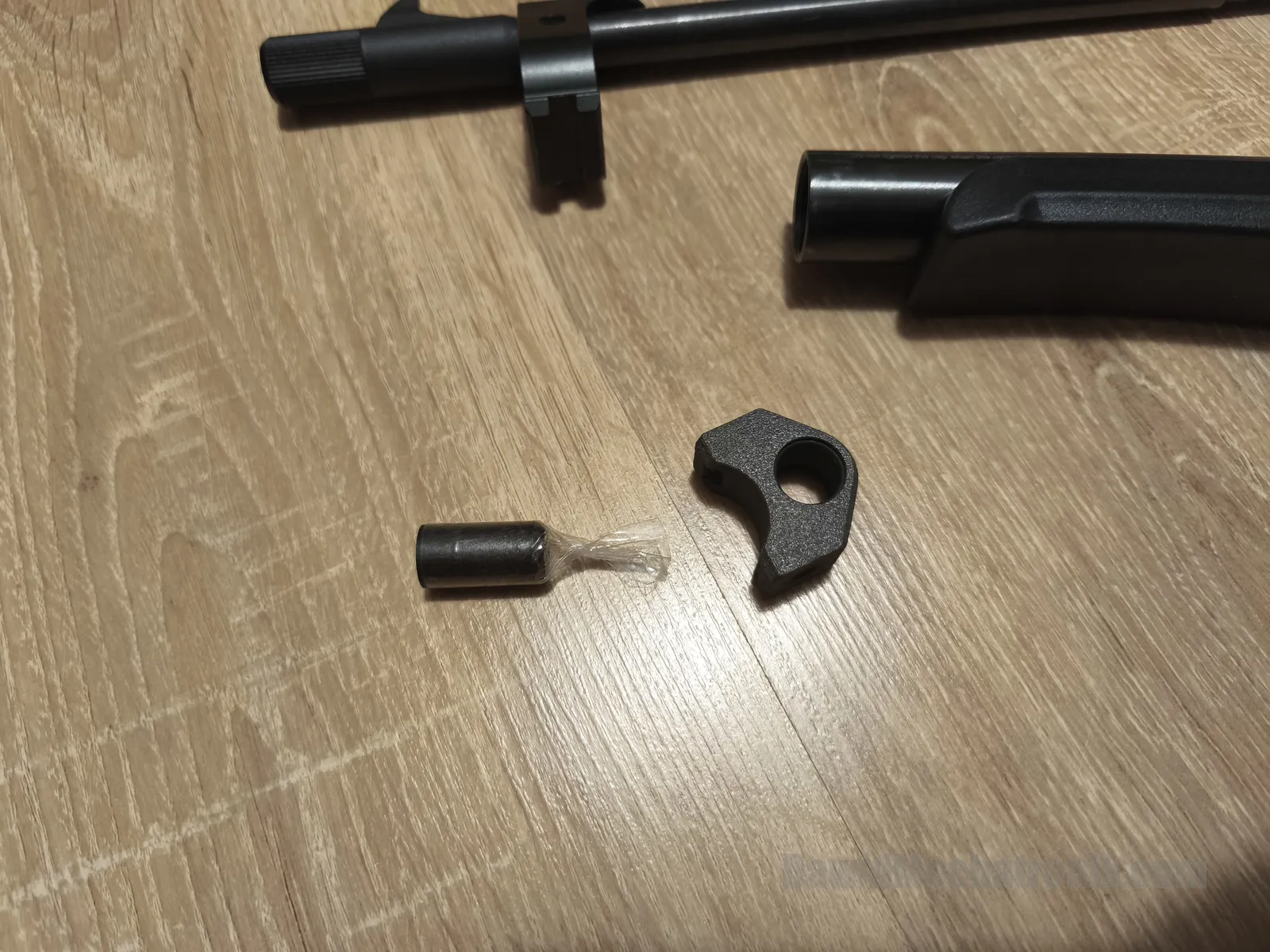

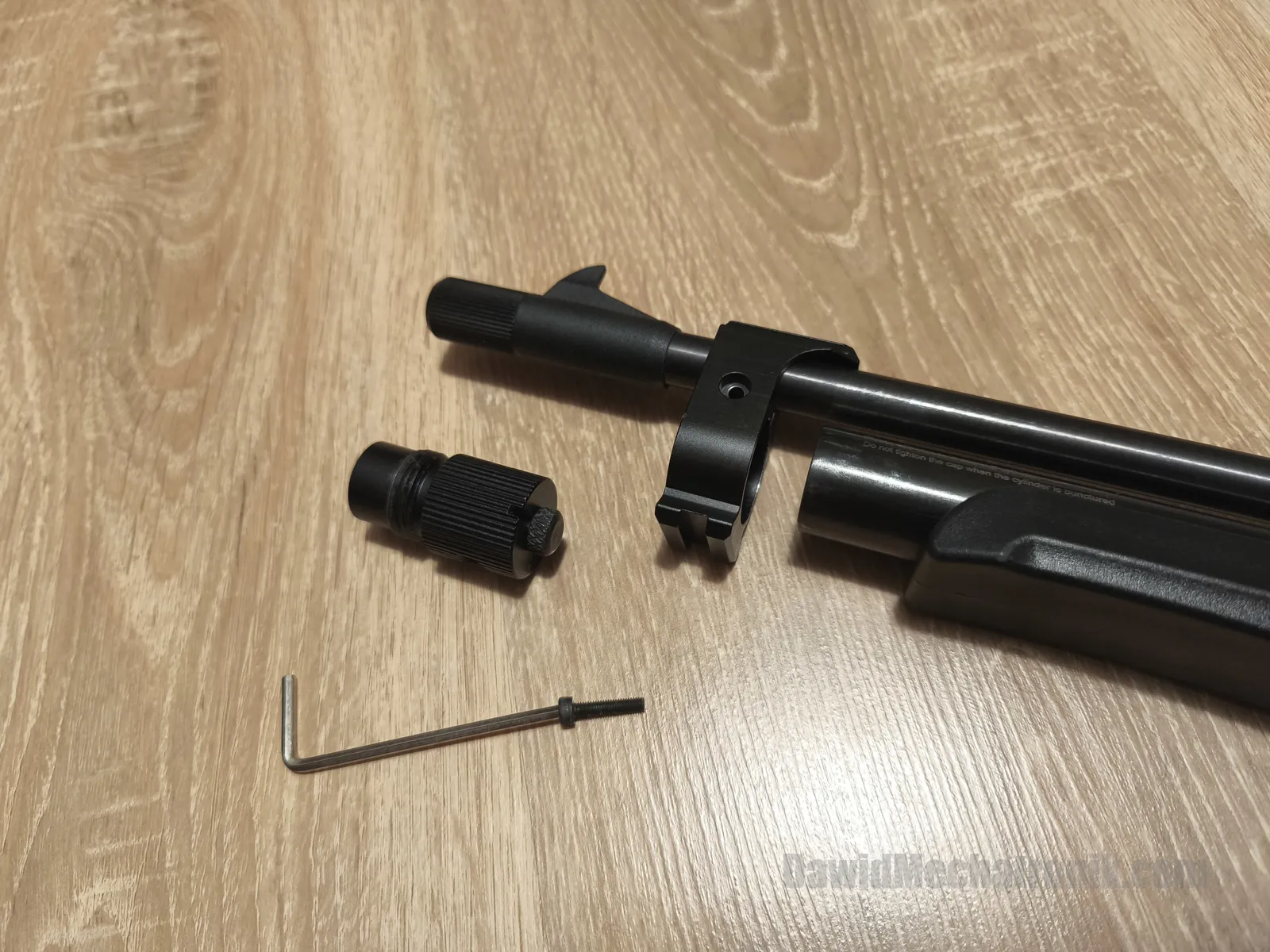

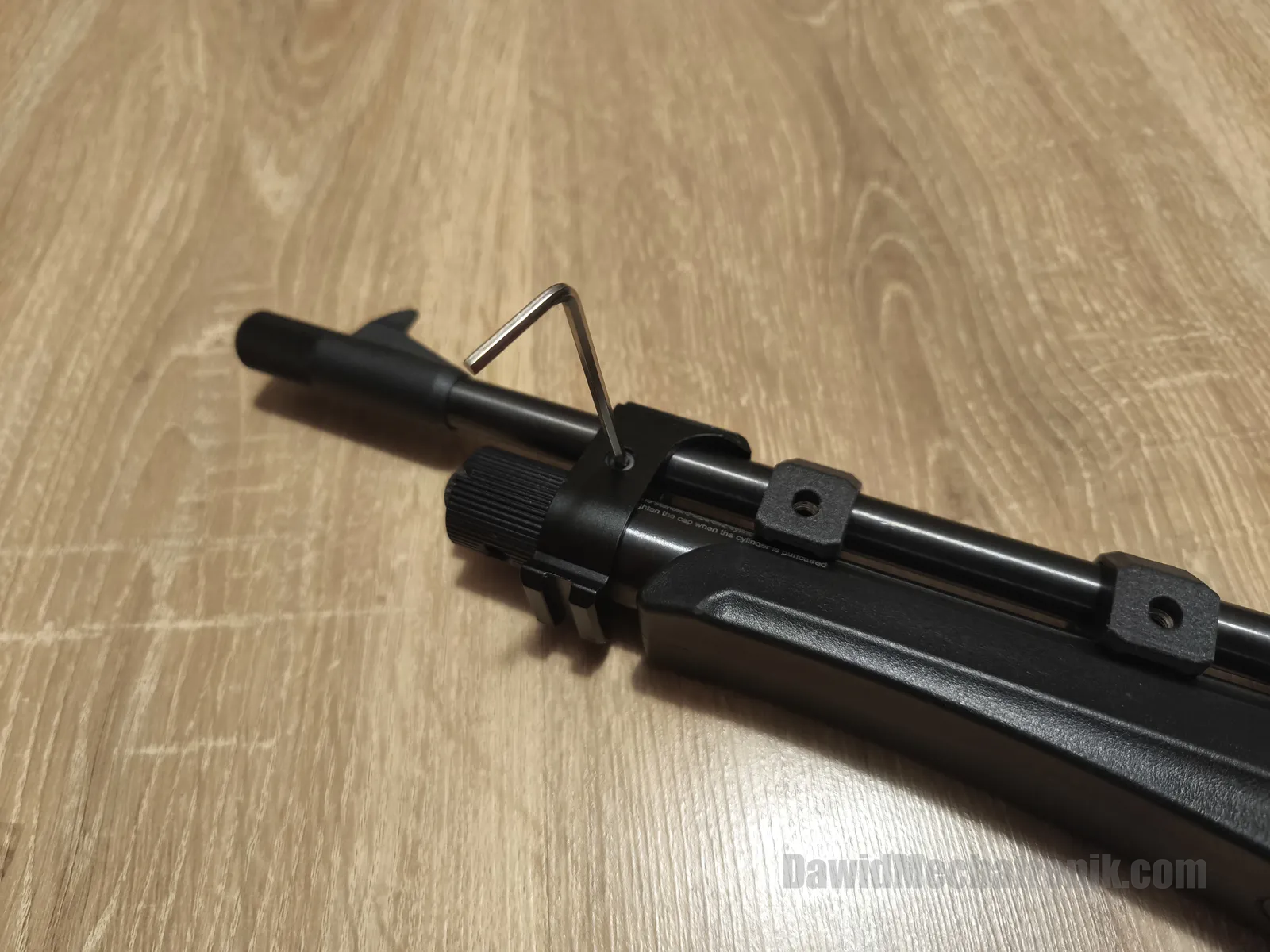

First, unscrew the component connecting the barrel to the CO2 tube.

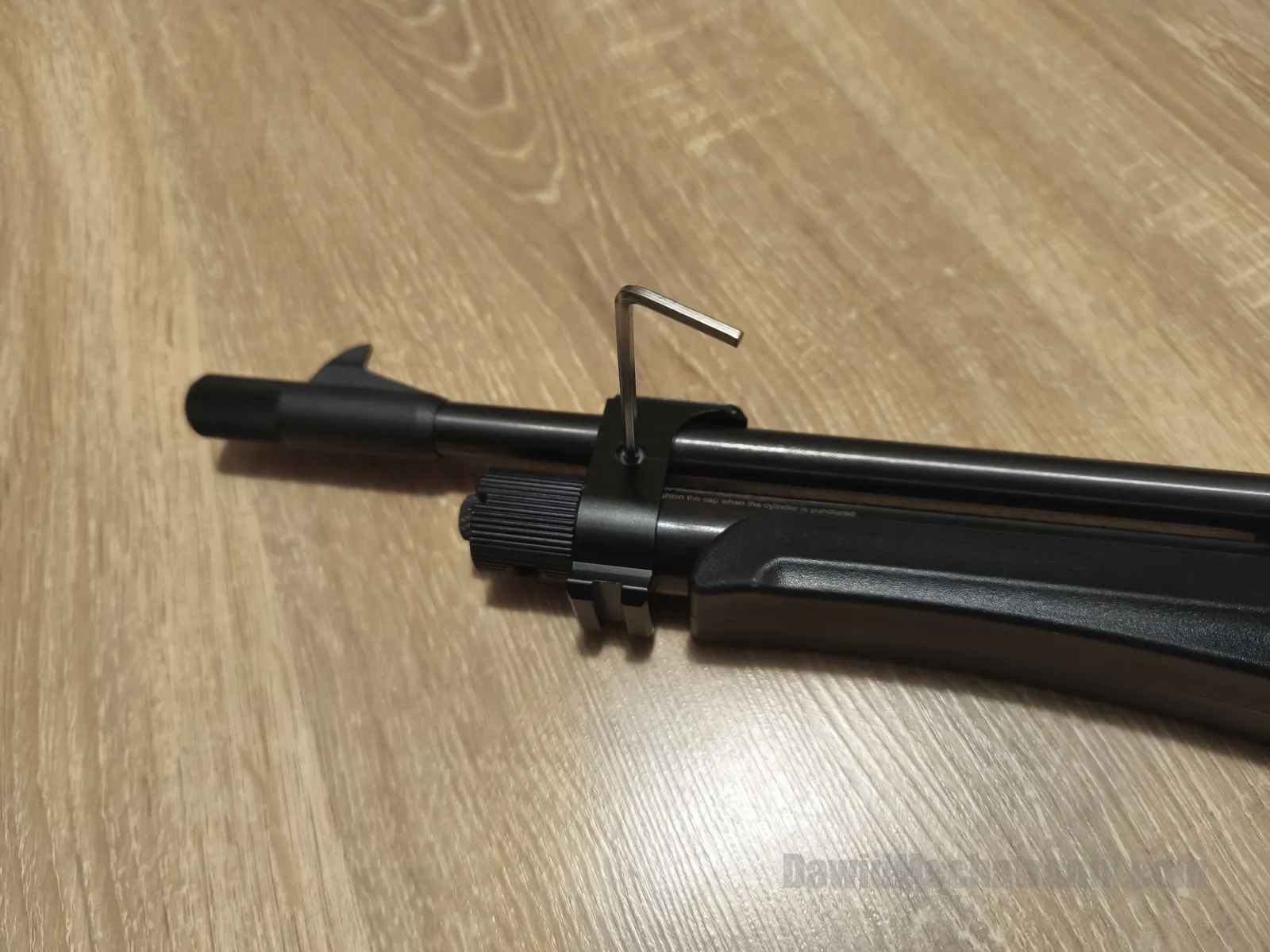

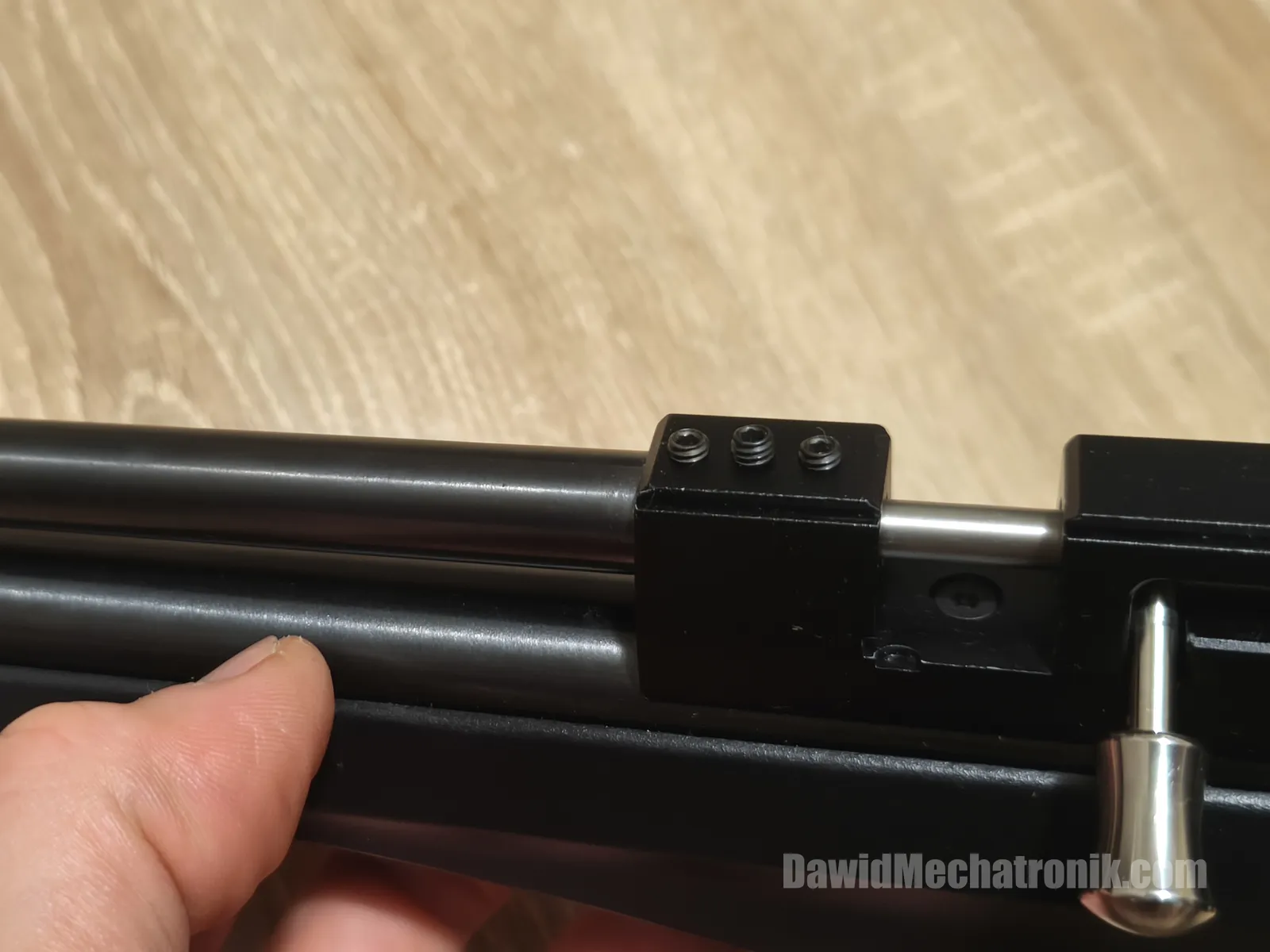

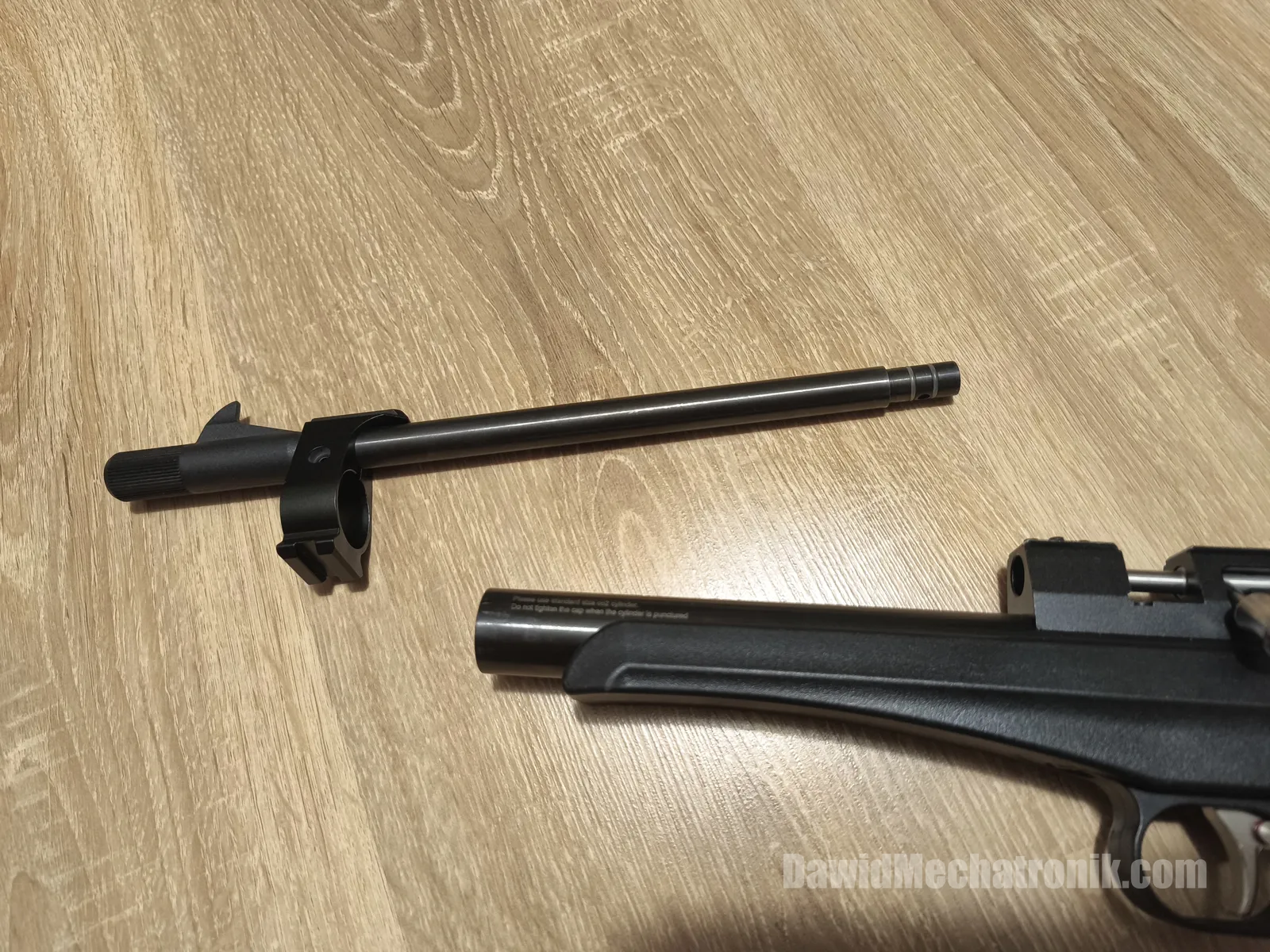

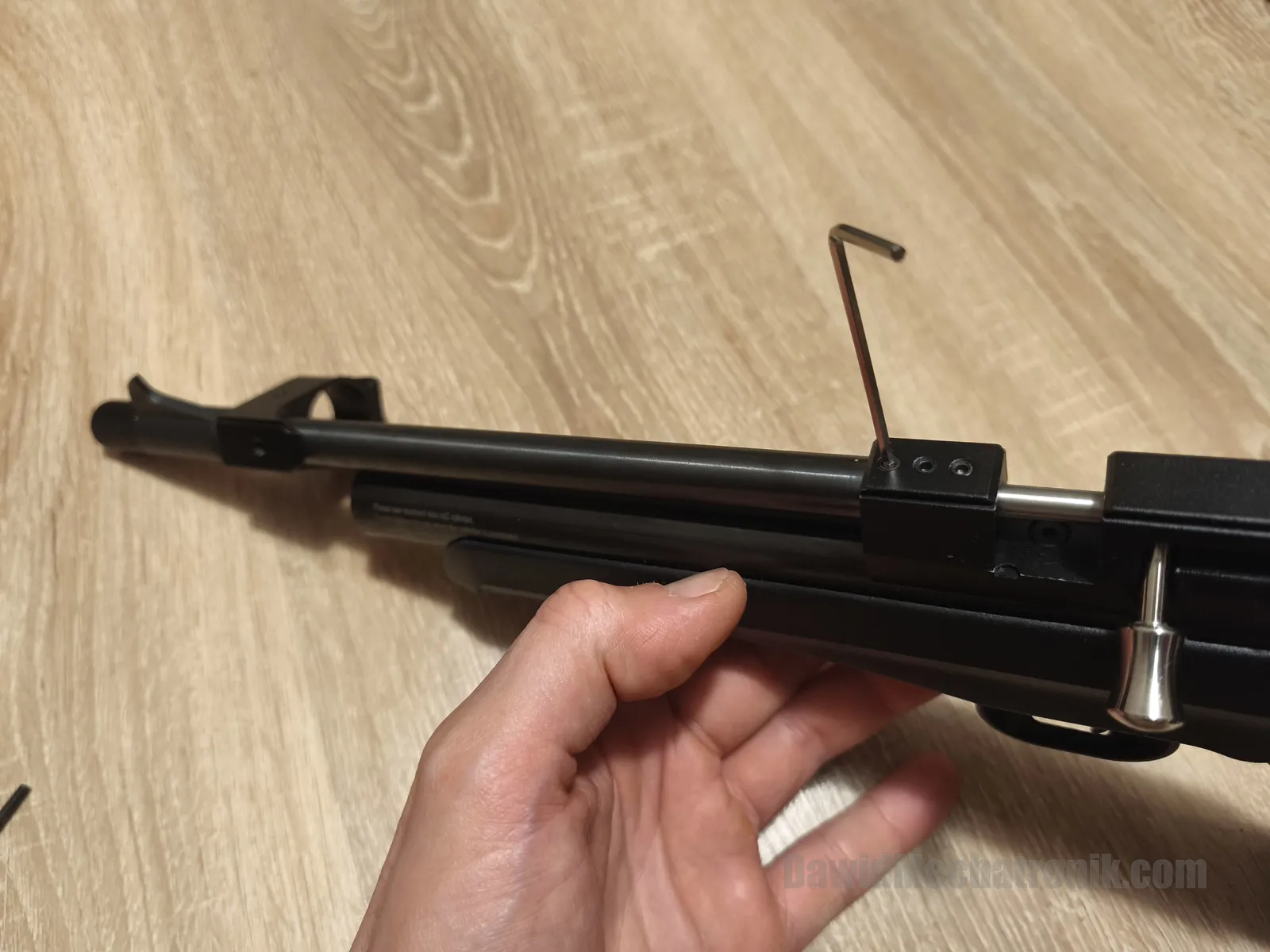

Unscrew the barrel from the block by removing the three set screws. The middle one is longer than the others.

Picatinny rail adapter instalation

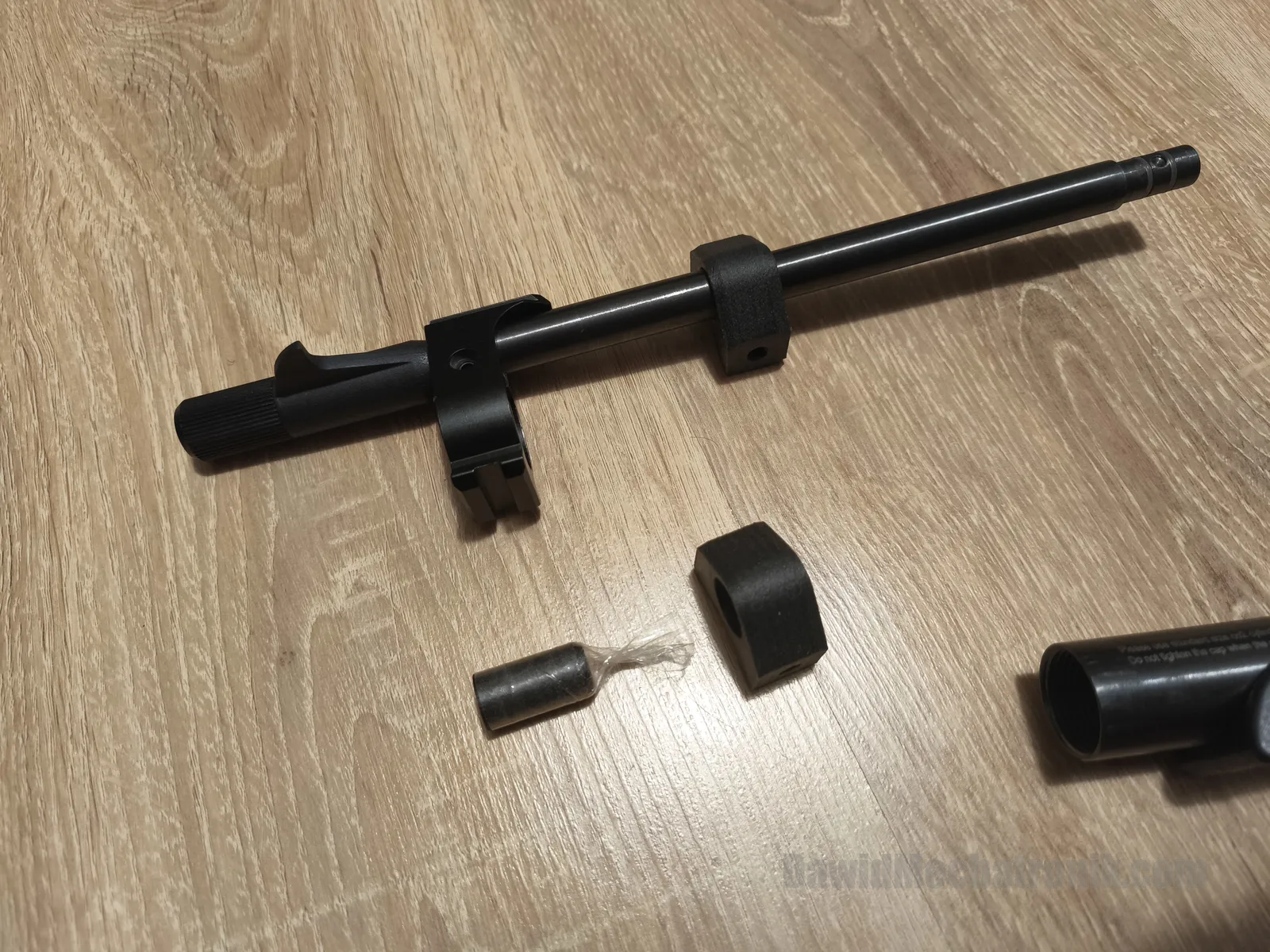

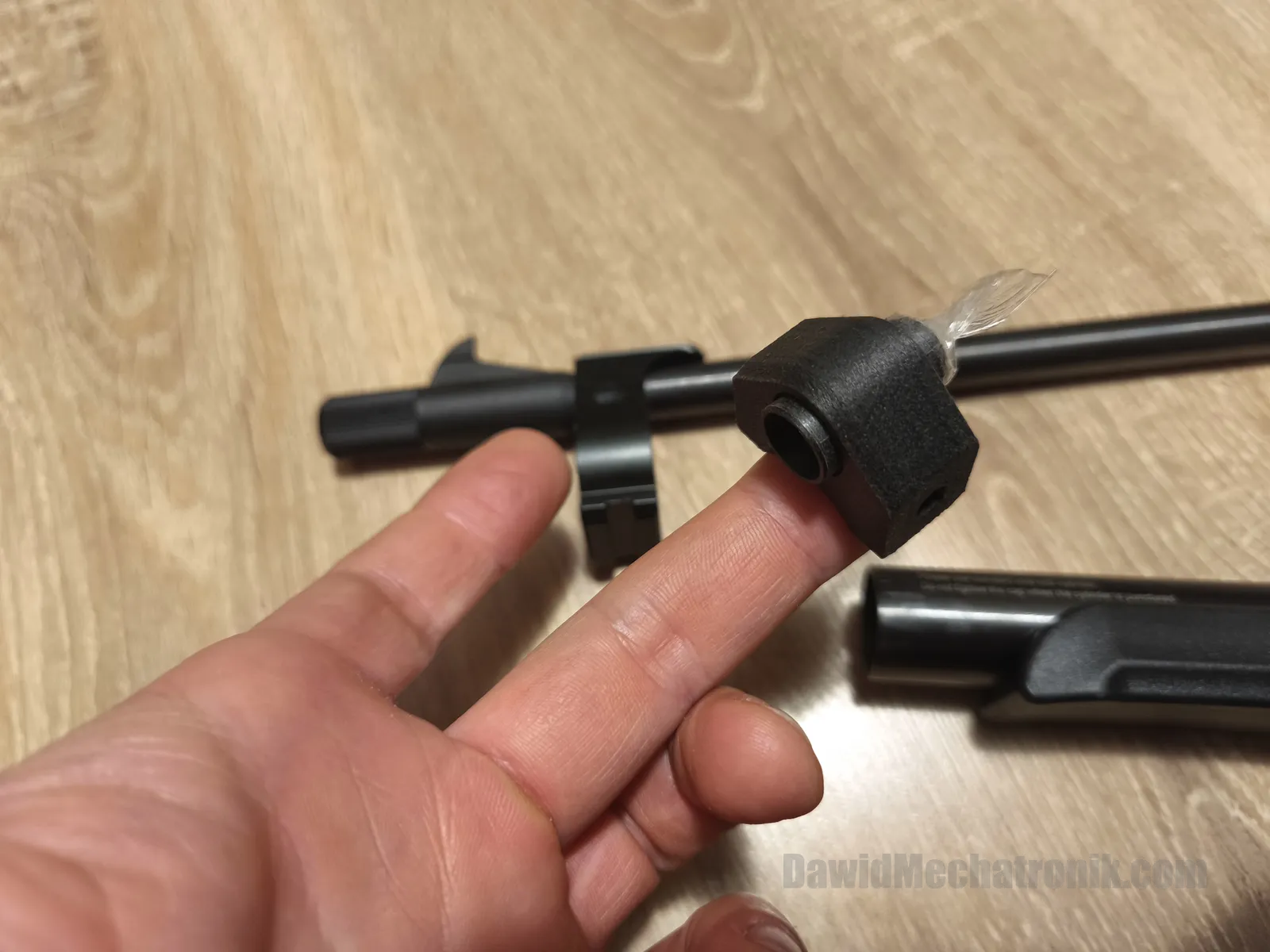

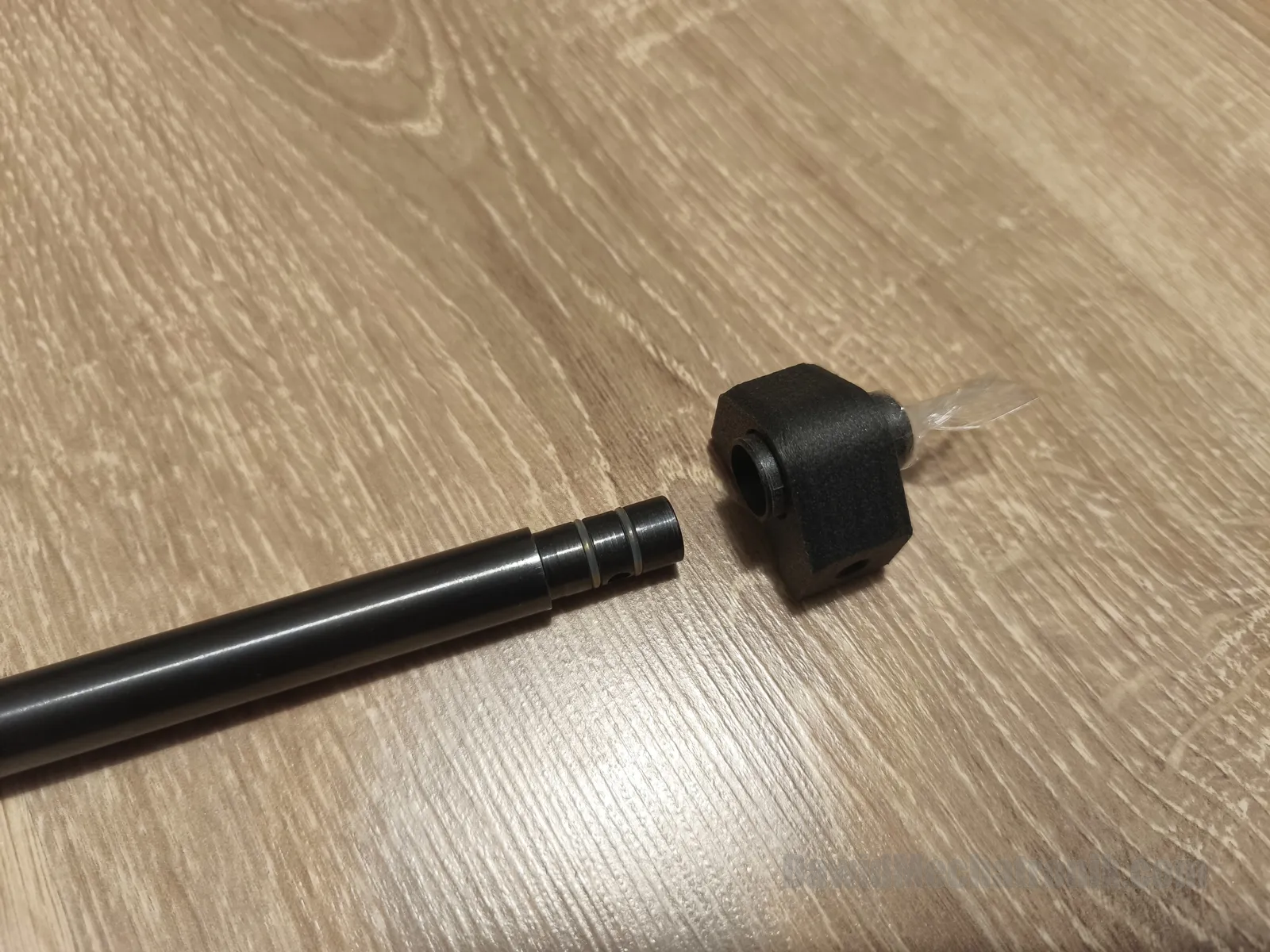

Prepare the tool and slide the picatinny adapter onto it.

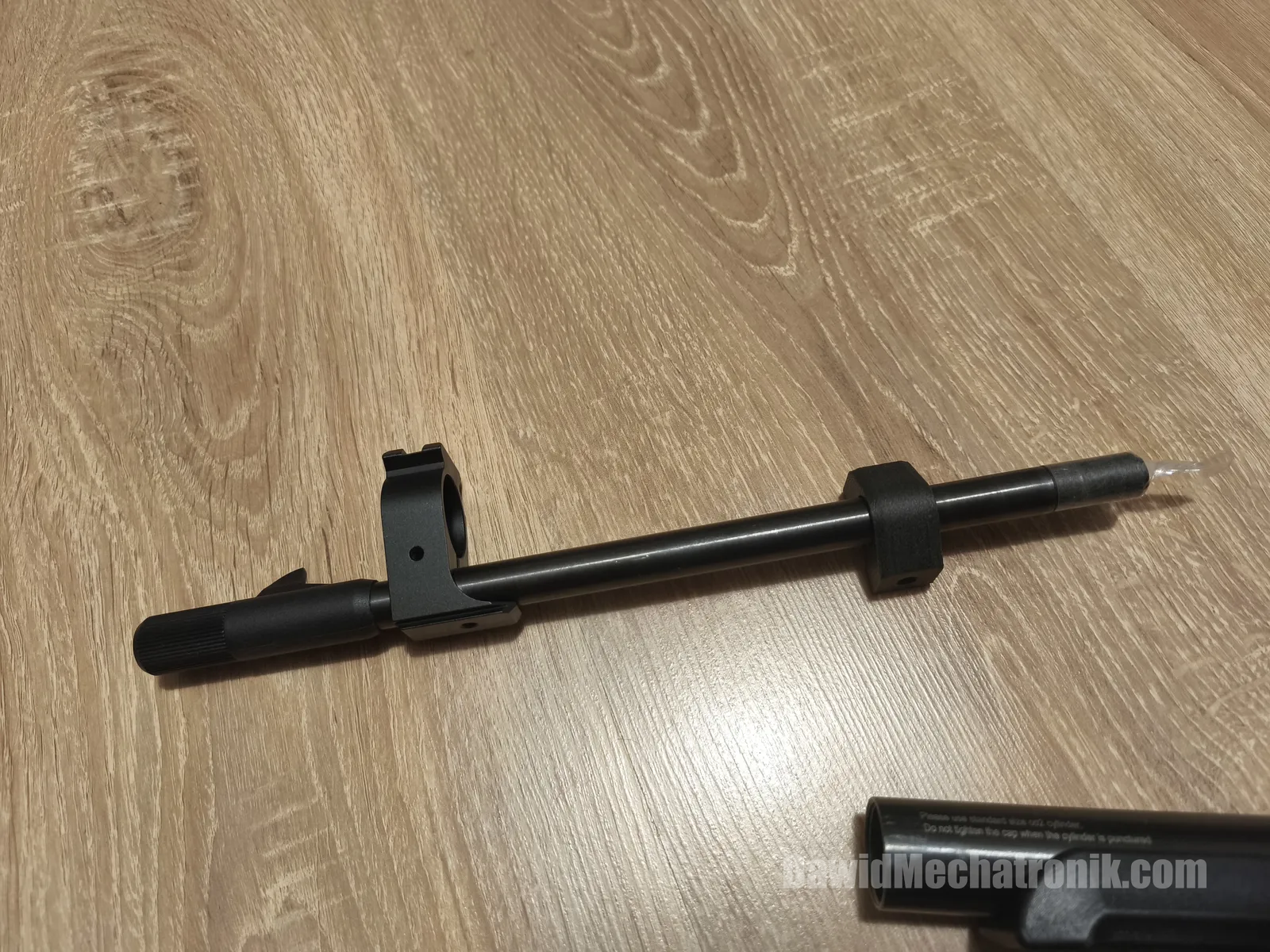

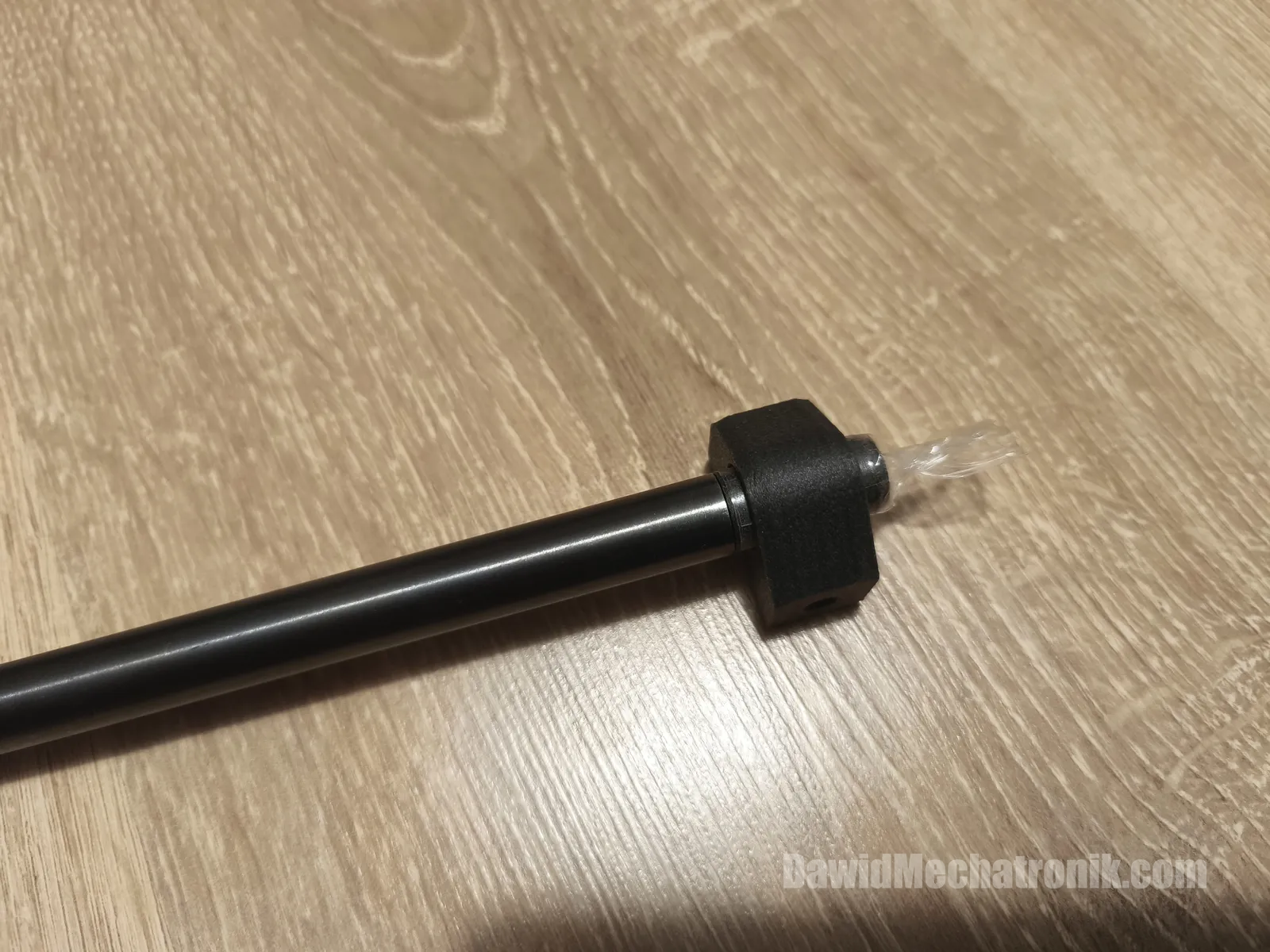

Place the tool onto the barrel and slide the picatinny adapter from the tool onto the barrel. You can rotate the barrel and the adapter to make it easier to move the picatinny adapter along the barrel.

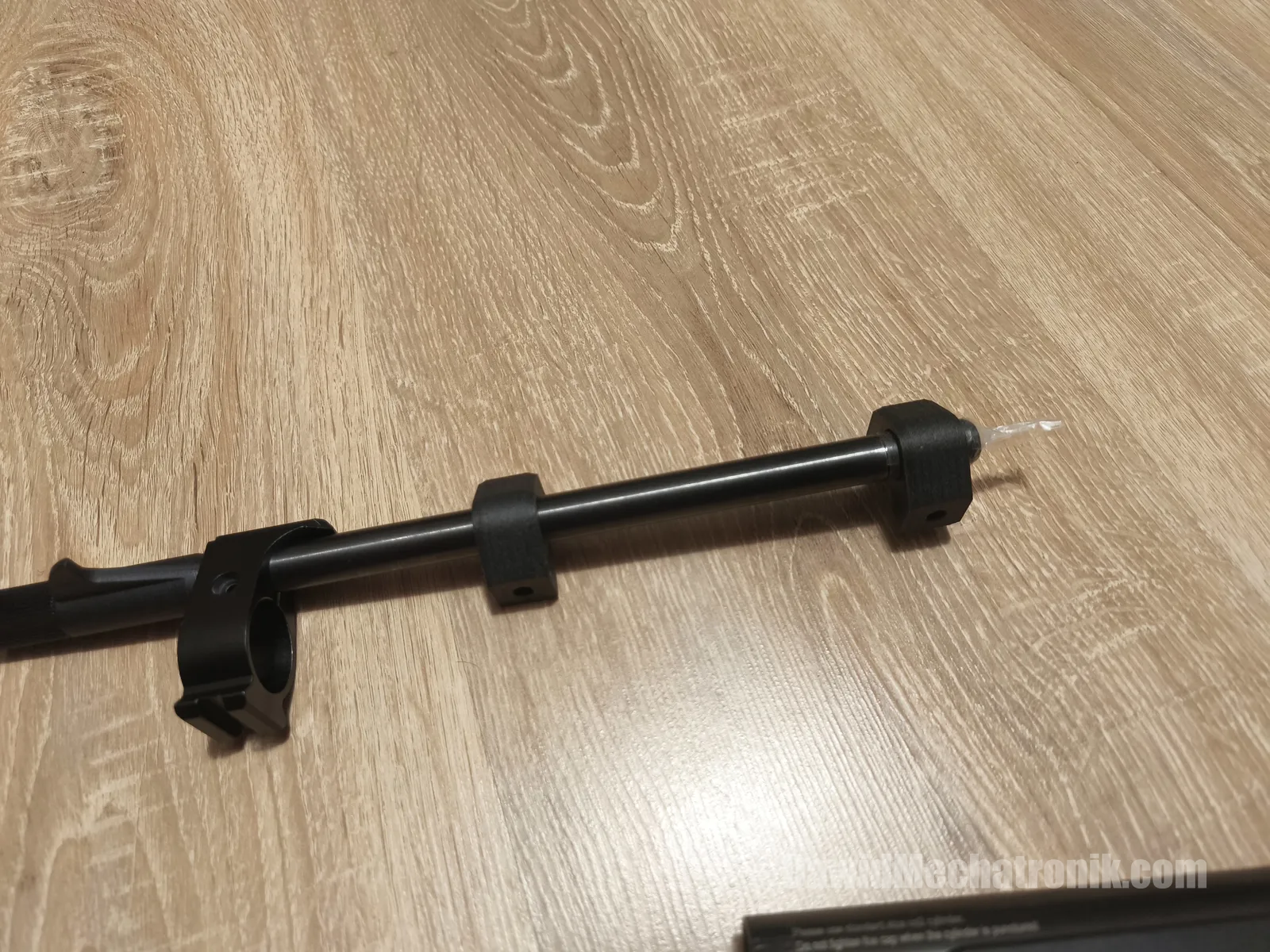

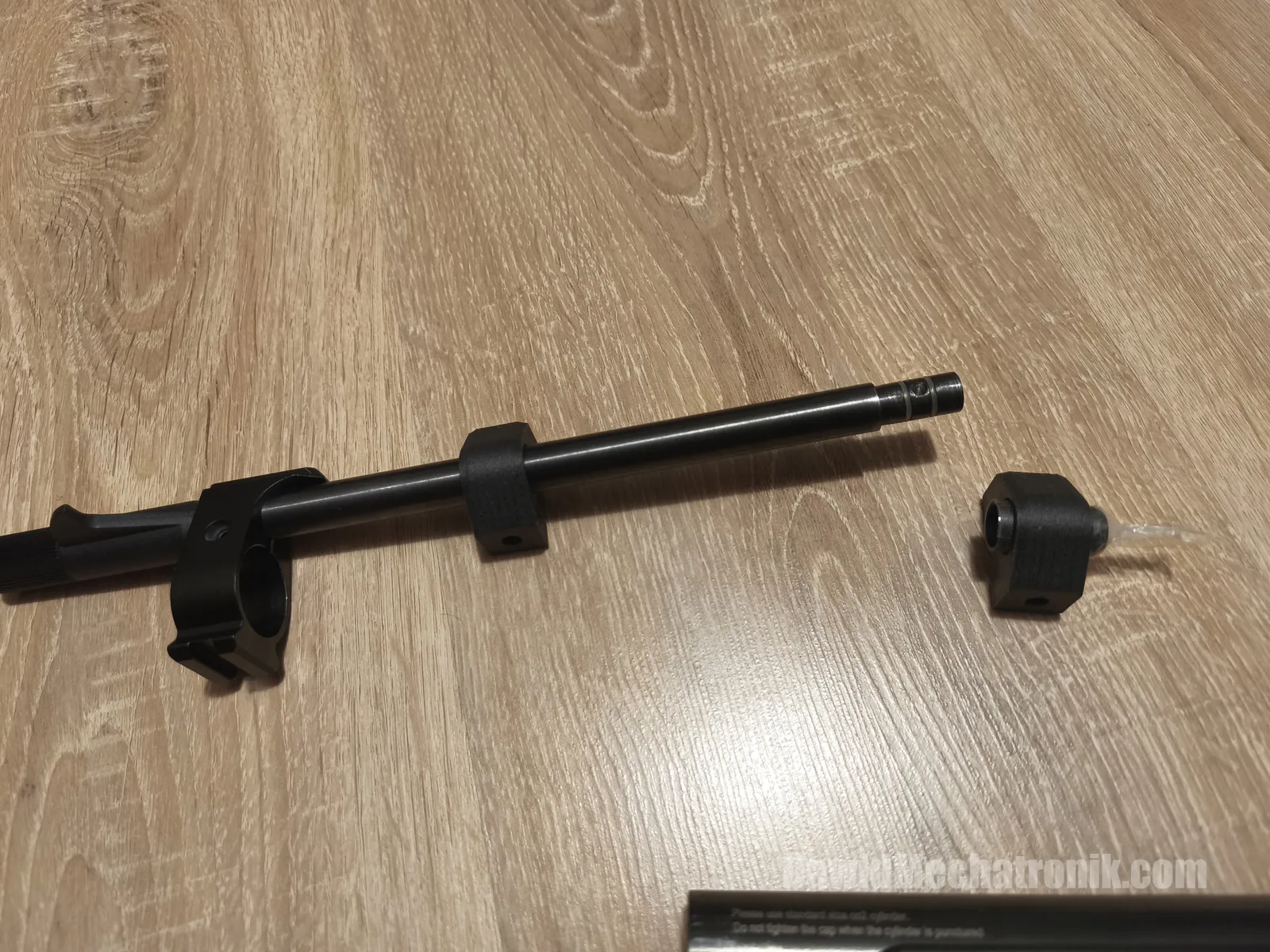

Repeat the process with the second Picatinny adapter.

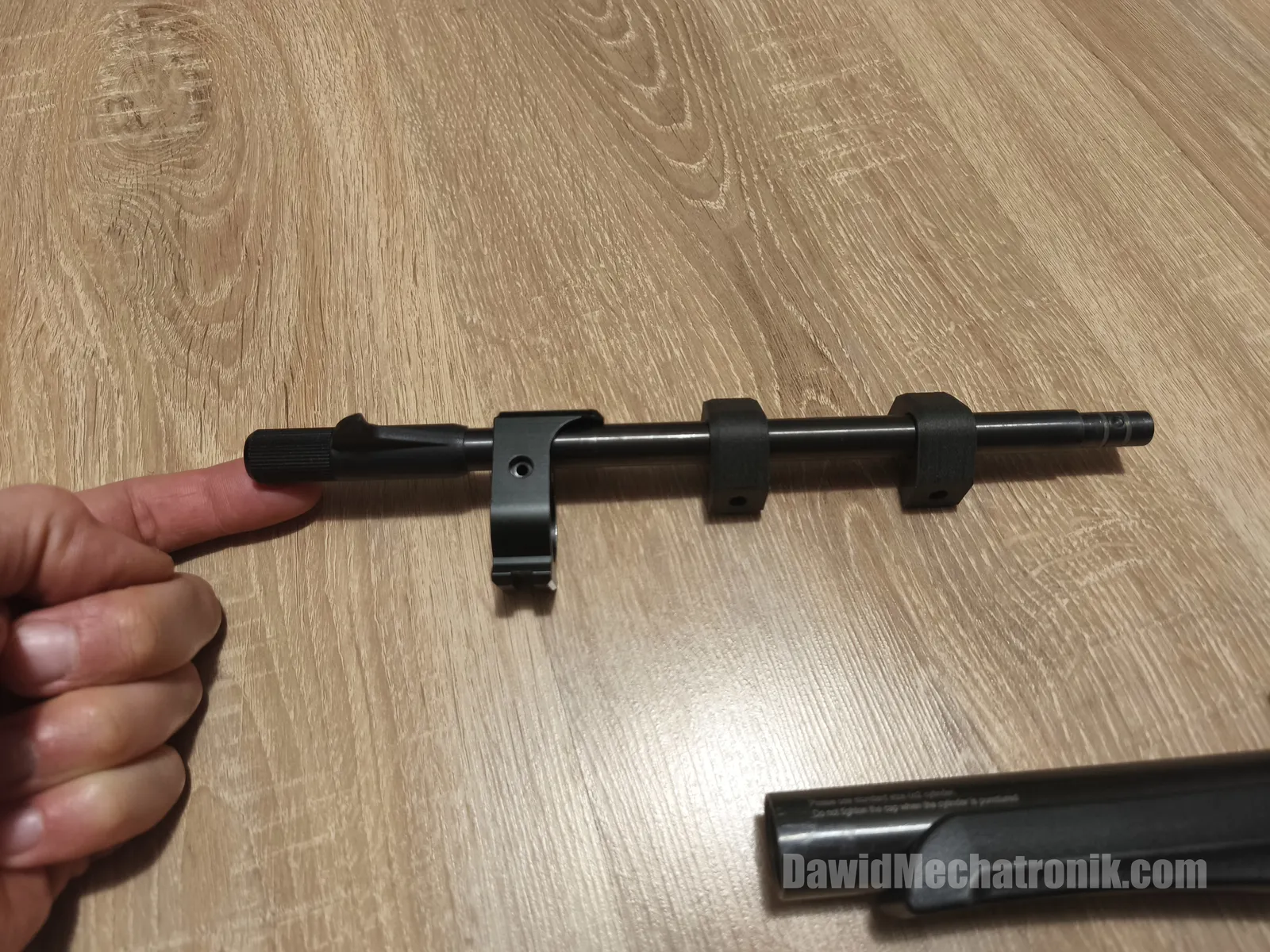

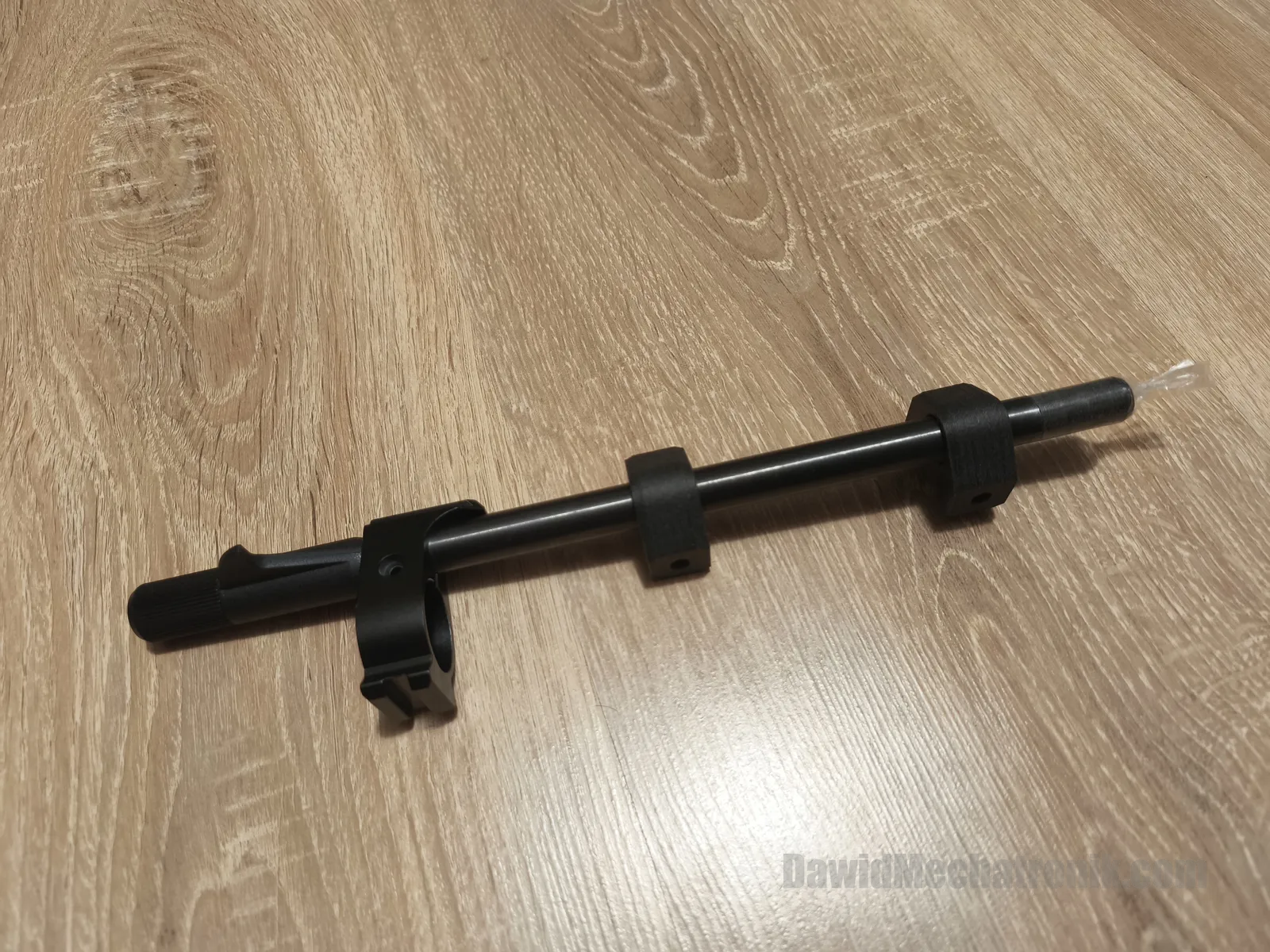

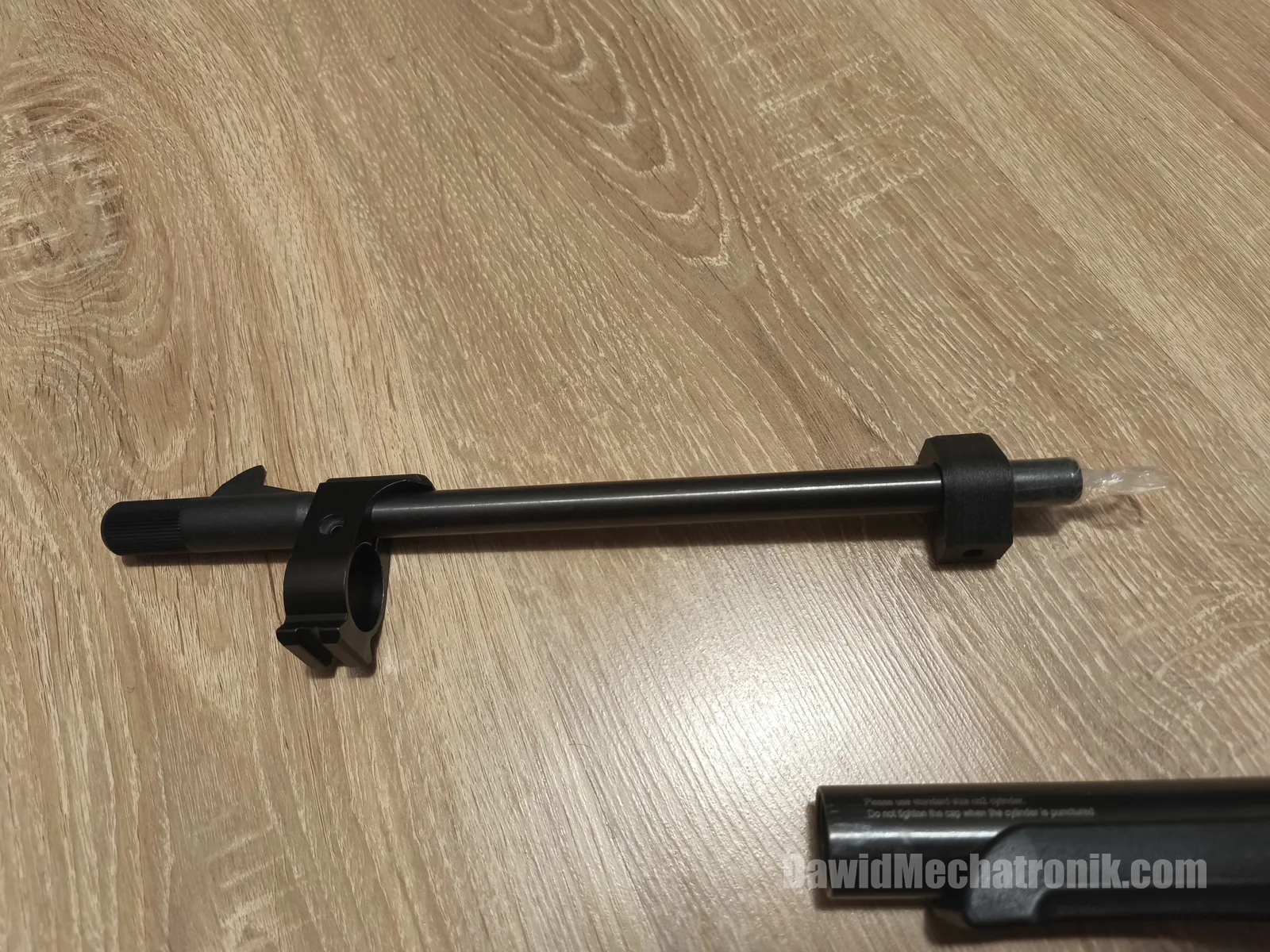

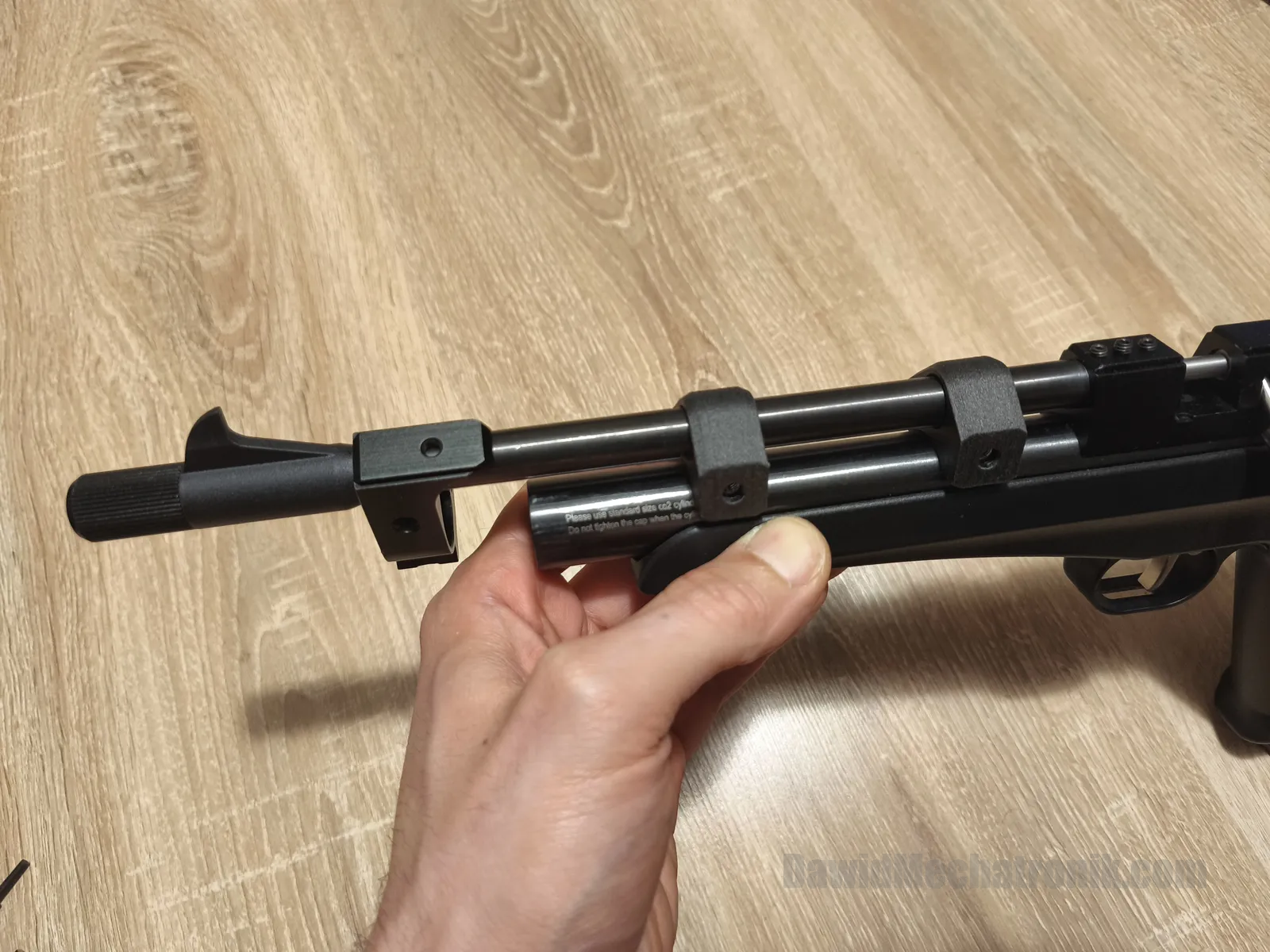

Align the Picatinny adapters and the front sight in the correct orientation.

Assembly

Insert the barrel into the block.

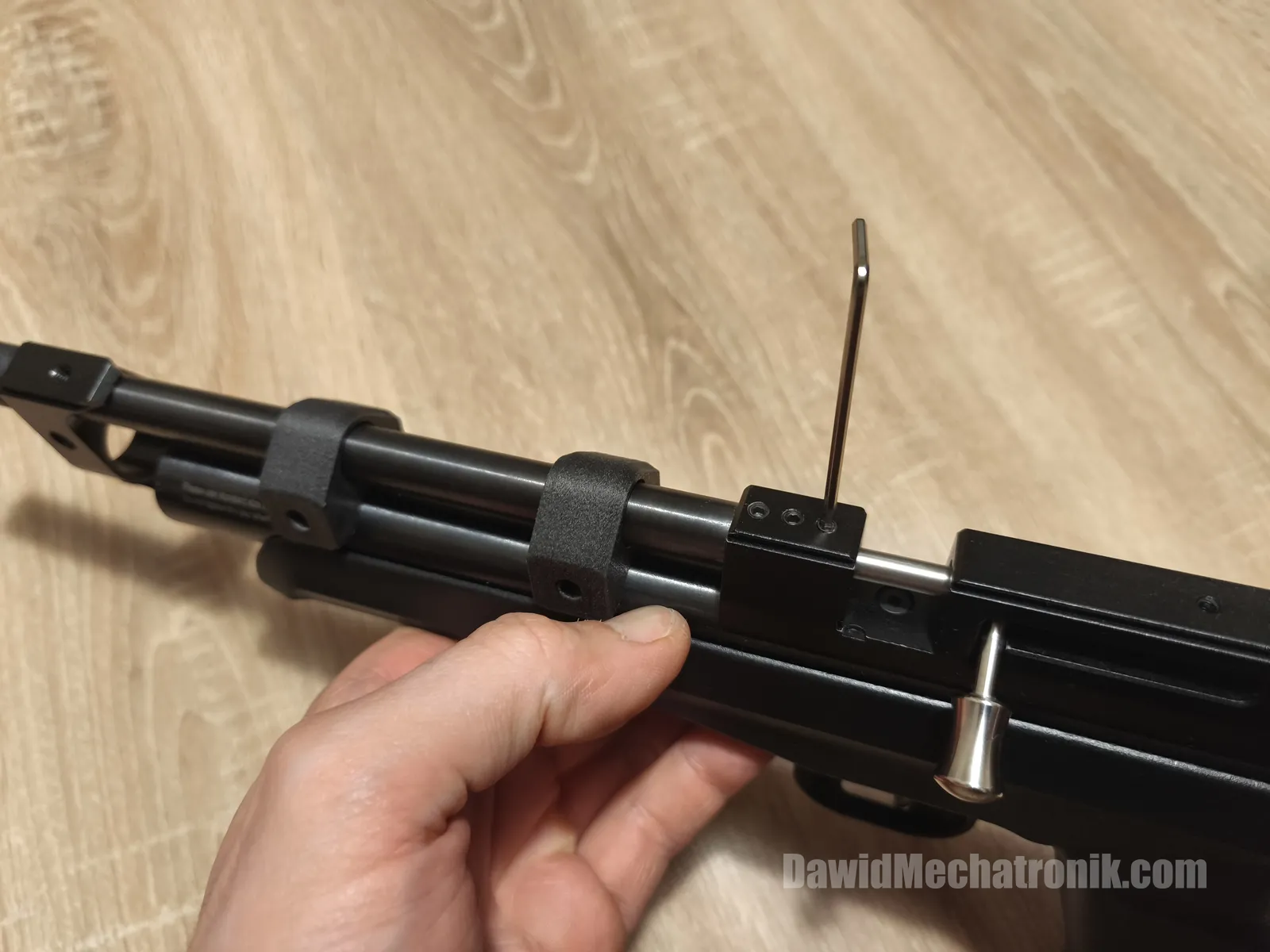

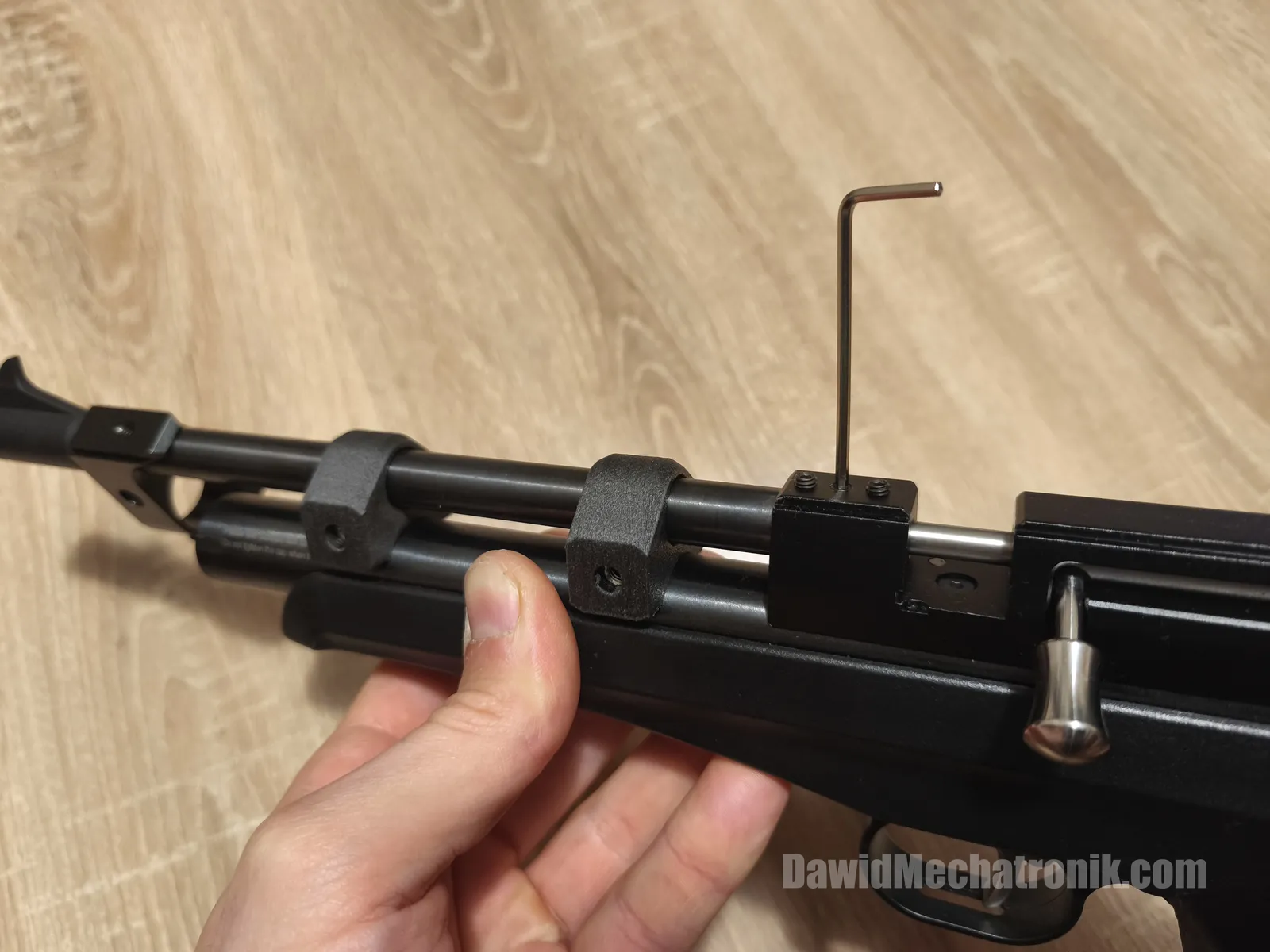

Insert the middle barrel-positioning screw and tighten it, ensuring the barrel is correctly aligned.

Tighten the two remaining set screws.

Finally, tighten the barrel connector to the CO2 tube and attach the CO2 tube cap.

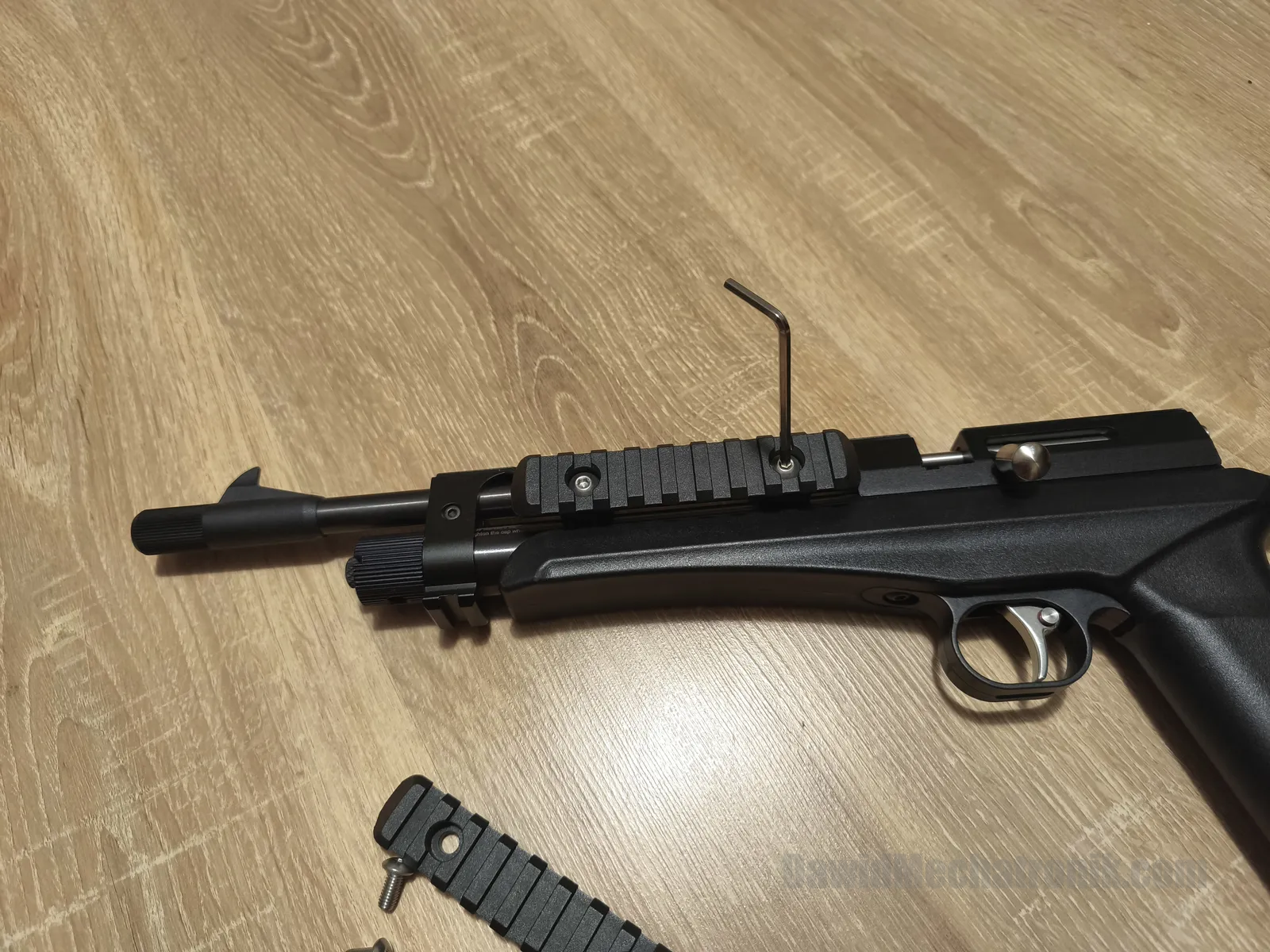

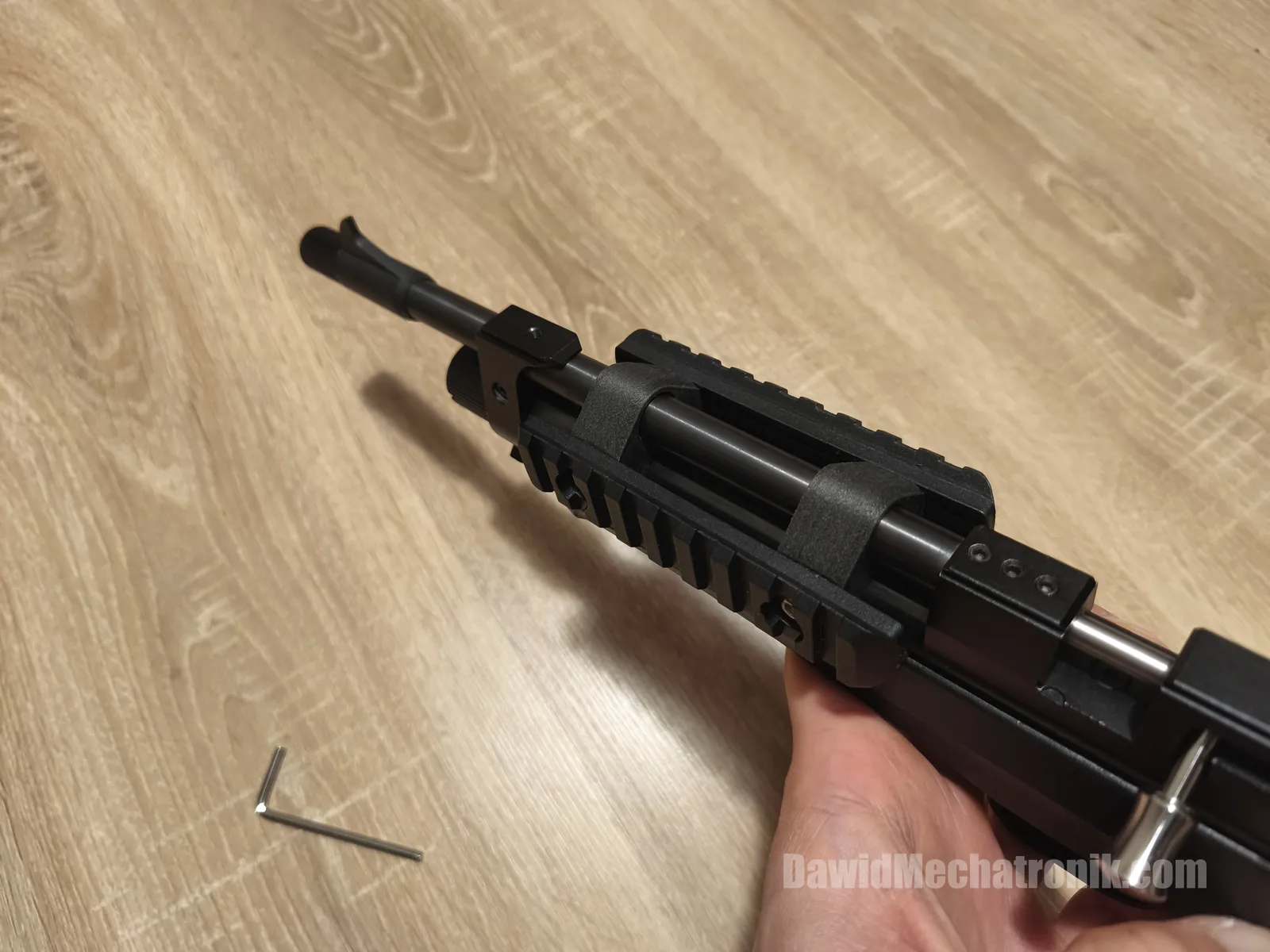

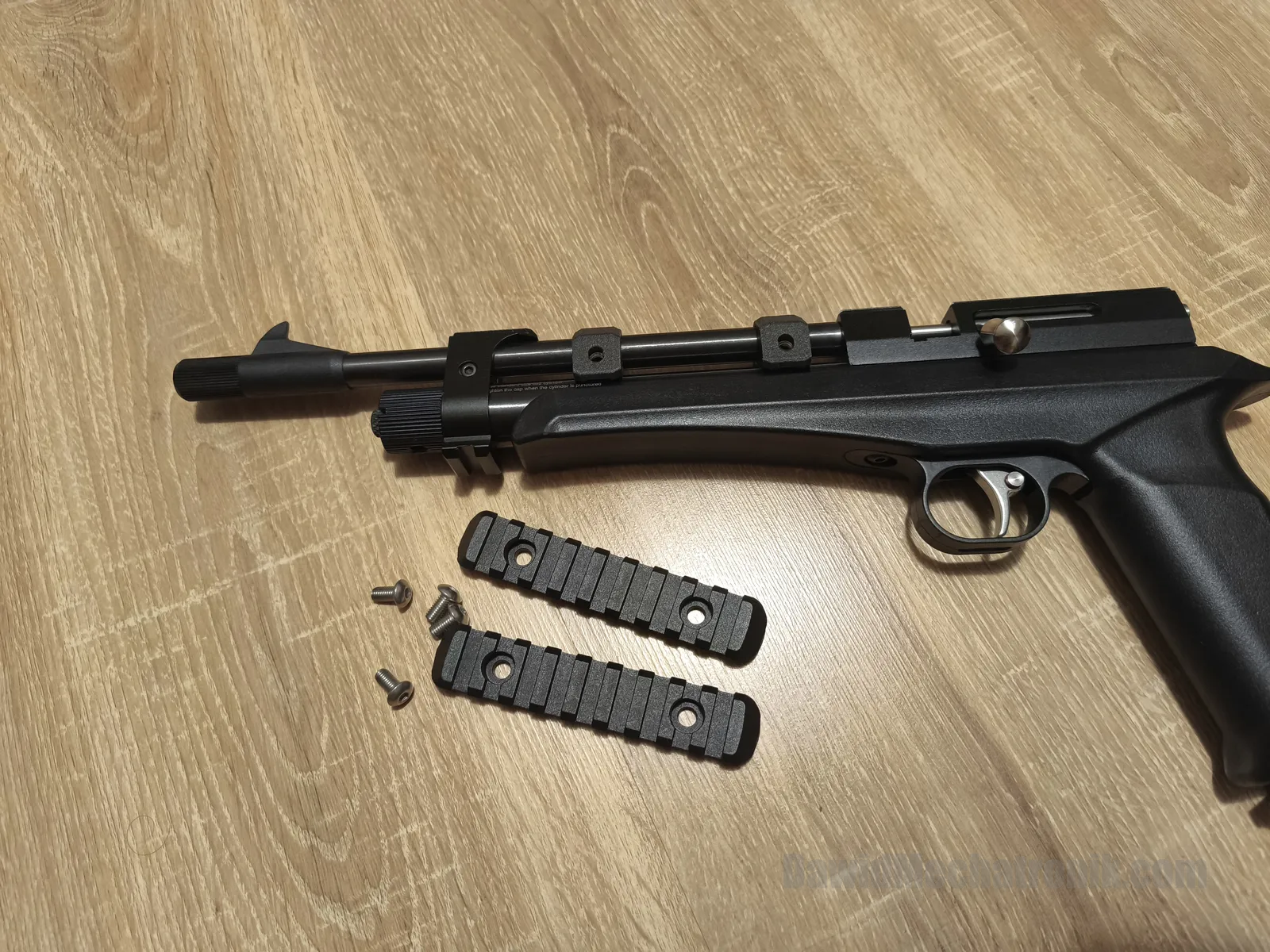

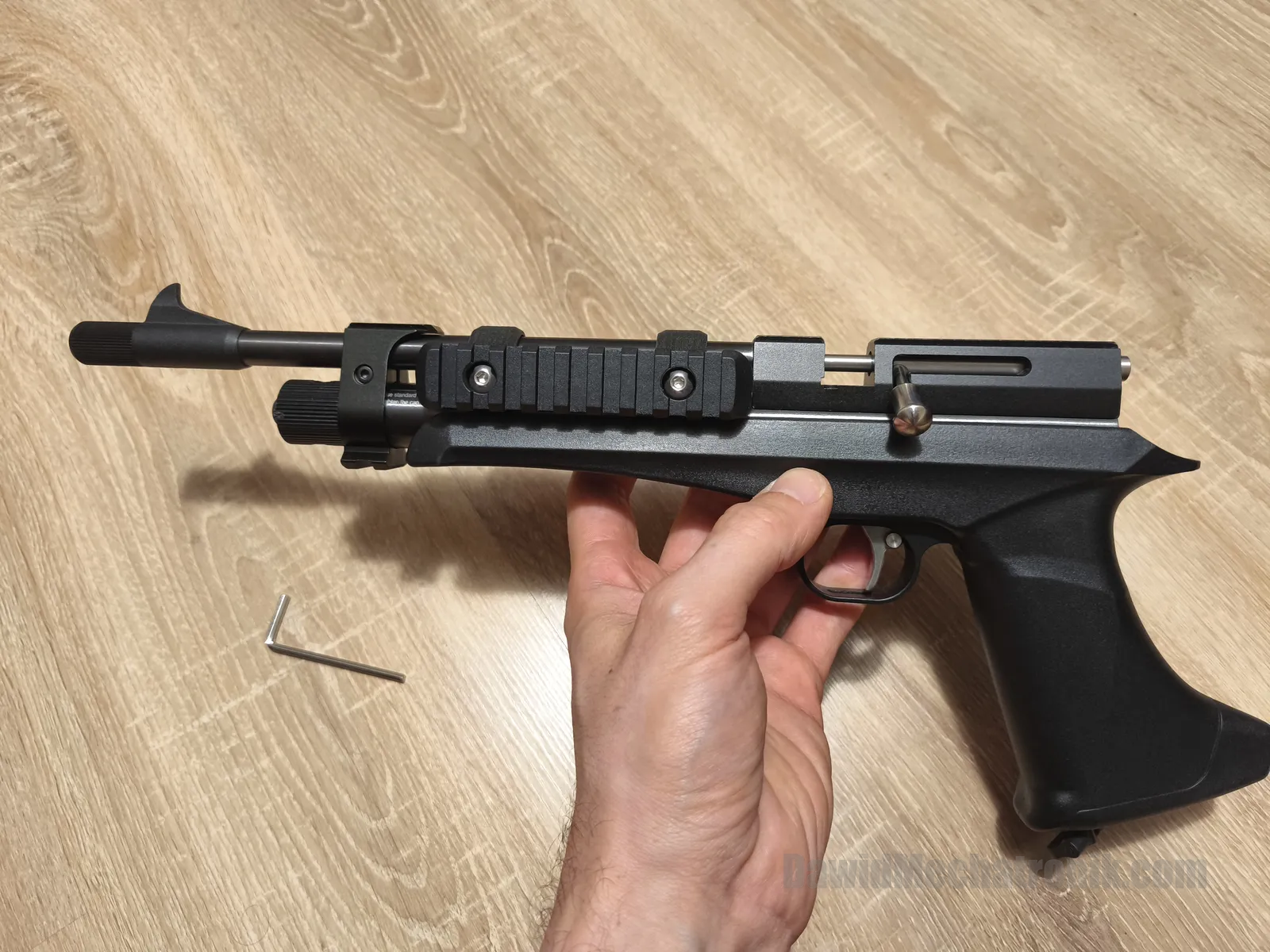

Finally, a picatinny rail can be added as desired.
